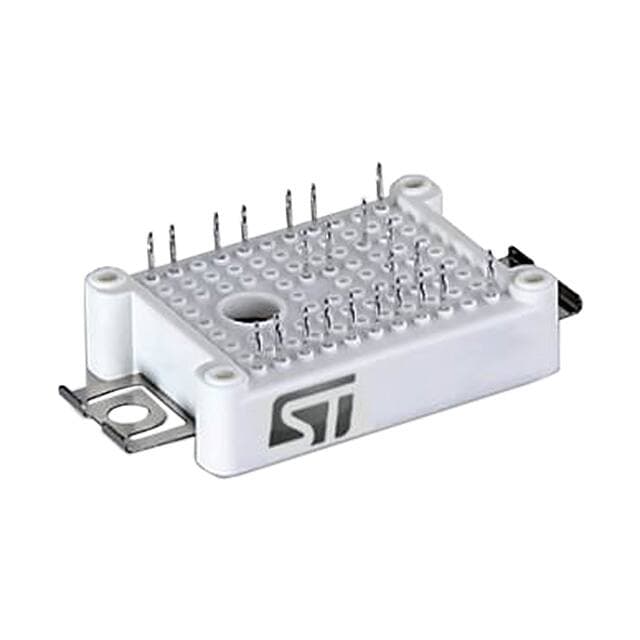

ST A1C15S12M3
ST A1C15S12M3

ST A1C15S12M3

Manufacturer No:

A1C15S12M3

Manufacturer:

ST

Package:

MODULE-23

Description:

ACEPACK 1 converter inverter brake 1200 V, 15 A trench gate field-stop IGBT M series, soft diode and NTC

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A1C15S12M3 information

ST A1C15S12M3 technical specifications, attributes, parameters and parts with similar specifications to ST A1C15S12M3.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Package Description
  • MODULE-23
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • Factory Lead Time
  • 53 Weeks, 1 Day
  • Date Of Intro
  • 2018-02-14
  • Samacsys Manufacturer
  • STMicroelectronics
  • Case Connection
  • ISOLATED
  • Collector Current-Max (IC)
  • 15 A
  • Collector-Emitter Voltage-Max
  • 1200 V
  • Configuration
  • COMPLEX
  • Gate-Emitter Thr Voltage-Max
  • 7 V
  • Gate-Emitter Voltage-Max
  • 20 V
  • JESD-30 Code
  • R-XUFM-X23
  • Number of Elements
  • 7
  • Number of Terminals
  • 23
  • Operating Temperature-Max
  • 150 °C
  • Operating Temperature-Min
  • -40 °C
  • Package Body Material
  • UNSPECIFIED
  • Package Shape
  • RECTANGULAR
  • Package Style
  • FLANGE MOUNT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Power Dissipation-Max (Abs)
  • 142.8 W
  • Surface Mount
  • NO
  • Terminal Form
  • UNSPECIFIED
  • Terminal Position
  • UPPER
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Transistor Application
  • POWER CONTROL
  • Transistor Element Material
  • SILICON
  • Turn-off Time-Nom (toff)
  • 199 ns
  • Turn-on Time-Nom (ton)
  • 134.5 ns
  • VCEsat-Max
  • 2.45 V

Download datasheets and manufacturer documentation for ST A1C15S12M3.

Datasheets:

A1C15S12M3 Description

This power module is a converter-inverter brake (CIB) topology in an ACEPACK? 1 package with NTC, integrating the advanced trench gate field stop technology from STMicroelectronics. This new IGBT technology represents the best compromise between conduction and switching loss, to maximize the efficiency of any converter system up to 20 kHz.



A1C15S12M3 Features

ACEPACK? 1 power module

DBC Cu Al2O3 Cu

Converter inverter brake topology

1600 V, very low drop rectifiers for

converter

1200 V, 15 A IGBTs and diodes

VCE(sat): 1.95 V @ IC = 15 A

Soft and fast recovery diode

Integrated NTC



A1C15S12M3 Applications

Inverters

Motor drives
