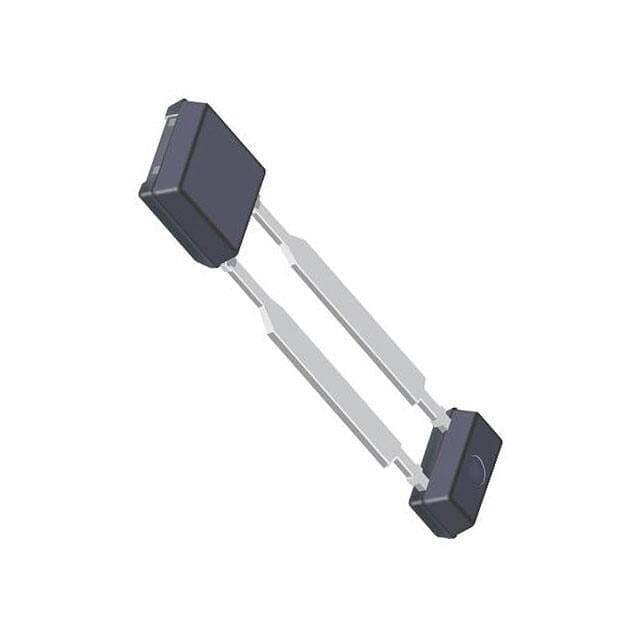

ALLEGRO A1698LUBTN-FWBG-T

Manufacturer No:

A1698LUBTN-FWBG-T

Manufacturer:

ALLEGRO

Package:

2-SIP Module

Description:

Current Source 4V~24V -40°C~150°C TA Special Purpose South Pole 60% Trip, 40% Release 2-SIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A1698LUBTN-FWBG-T information

ALLEGRO A1698LUBTN-FWBG-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A1698LUBTN-FWBG-T.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Through Hole

Package / Case
2-SIP Module

Surface Mount
NO

Operating Temperature
-40°C~150°C TA

Packaging
Cut Tape (CT)

Published
2015

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Additional Feature
SEATED HT-CALCULATED

HTS Code
8542.39.00.01

Technology
Hall Effect

Voltage - Supply
4V~24V

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
12V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-PSIP-T2

Function
Special Purpose

Output Type
Current Source

Polarity
South Pole

Supply Voltage-Max (Vsup)
24V

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
South Pole

Max Supply Current
16mA

Sensing Method
Hall Effect

Test Condition
-40°C ~ 150°C

Sensing Range
60% Trip, 40% Release

Length
4mm

Height Seated (Max)
4.6mm

Width
1.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO A1698LUBTN-FWBG-T.

Datasheets:

allegromicrosystems-a1698lubtnfwpet-datasheets-5287.pdf

A1698LUBTN-FWBG-T Overview

A protective Cut Tape (CT) package surrounds the magnetic switch to protect it from damage. Magnet switches are packed in 2-SIP Module packages for safety reasons. This switch can supply a maximum of 16mA amps. The document has 2 terminations. Switches like this should supply voltages no higher than 24V. It is normal for this switch to supply 12V in order to perform reliably. This magnetic switch can provide 4V voltage as the minimum voltage.
