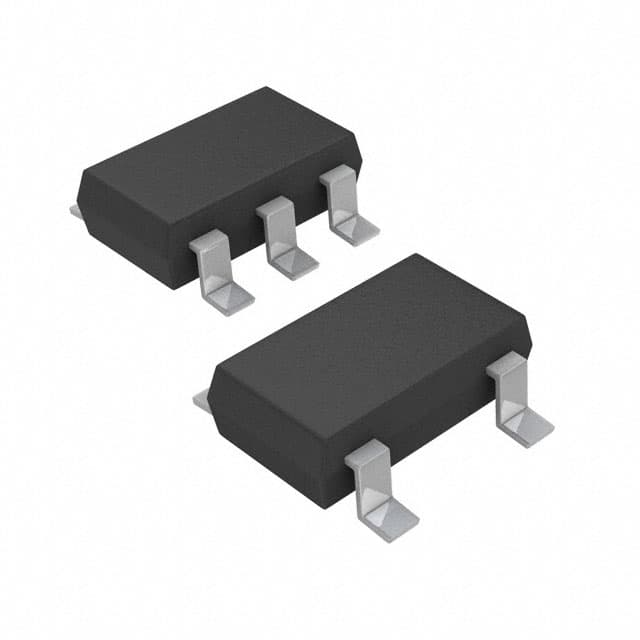

ALLEGRO A1266ELHLX-T

Manufacturer No:

A1266ELHLX-T

Manufacturer:

ALLEGRO

Package:

SOT-23-5 Thin, TSOT-23-5

Description:

Open Drain 2.5V~5.5V -40°C~85°C TA Omnipolar Switch North Pole, South Pole ±4mT Trip, ±0.5mT Release SOT-23-5 Thin, TSOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A1266ELHLX-T information

ALLEGRO A1266ELHLX-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A1266ELHLX-T.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
SOT-23-5 Thin, TSOT-23-5

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2007

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

HTS Code
8542.39.00.01

Technology
Hall Effect

Voltage - Supply
2.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G5

Function
Omnipolar Switch

Output Type
Open Drain

Max Output Current
3mA

Supply Voltage-Max (Vsup)
5.5V

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
North Pole, South Pole

Max Supply Current
3mA

Sensing Method
Hall Effect

Test Condition
-40°C ~ 85°C

Sensing Range
±4mT Trip, ±0.5mT Release

Length
2.98mm

Height Seated (Max)
1.13mm

Width
1.91mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO A1266ELHLX-T.

Datasheets:

allegromicrosystems-a1266elhltt-datasheets-8662.pdf

A1266ELHLX-T Overview

It is protected against damage by being packaged in a Tape & Reel (TR). In order to protect the switches from damage, they are packaged in SOT-23-5 Thin, TSOT-23-5 packages. When these switches are working, 3mA is the maximum current they can output. It is possible for these switches to supply a maximum current of 3mA. The file has 5 terminations. It should supply a maximum voltage of 5.5V when it is functioning. When this switch is operating reliably, it will supply 3.3V voltage. Using this magnetic switch, you can supply 2.5V at the minimum.

A1266ELHLX-T Features

Packaging: Tape & Reel (TR)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 2.5V~5.5V
Operating Temperature: -40°C~85°C TA
Mounting Type: Surface Mount
5 Terminations
Output Type: Open Drain

A1266ELHLX-T Applications

There are a lot of Allegro MicroSystems
A1266ELHLX-T Magnetic Switches applications.

Brushless DC (direct current) motor commutation
Motor and fan control
Robotics control
Electric window lift
Convertible roof position
Motor assemblies
Medication dispensing control
Security and military applications
Detection of ferromagnetic
Discrimination of ferromagnetic
