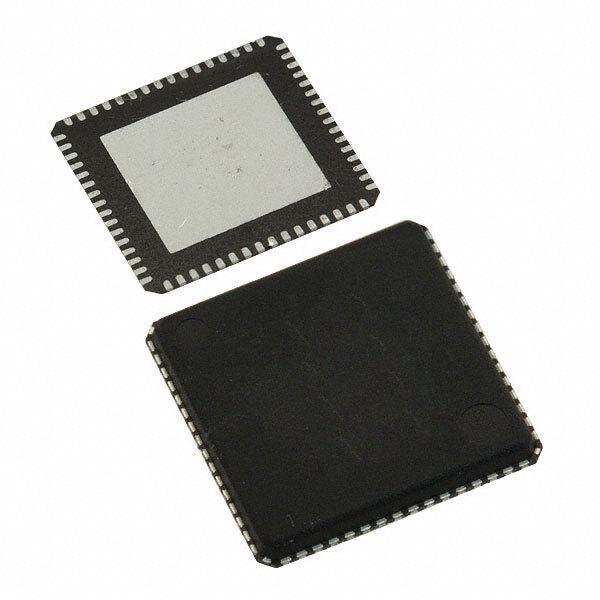

Renesas 9ZX21501BKLFT
Renesas 9ZX21501BKLFT

Renesas 9ZX21501BKLFT

Manufacturer No:

9ZX21501BKLFT

Manufacturer:

Renesas

Package:

Description:

3.3V V 9mm mm Application Specific Timer 9mm mm 0.5mm mm 9mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

9ZX21501BKLFT information

Renesas 9ZX21501BKLFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 9ZX21501BKLFT.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Number of Pins
  • 64
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 64
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Clock Drivers
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 64
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • COMMERCIAL
  • Supply Voltage-Min (Vsup)
  • 3.135V
  • Family
  • 9ZX
  • Output Characteristics
  • 3-STATE
  • Logic IC Type
  • PLL BASED CLOCK DRIVER
  • Same Edge Skew-Max (tskwd)
  • 0.065 ns
  • Number of True Outputs
  • 15
  • Input Conditioning
  • DIFFERENTIAL MUX
  • Length
  • 9mm
  • Height Seated (Max)
  • 1mm
  • Width
  • 9mm
  • Thickness
  • 900?m
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas 9ZX21501BKLFT.

Datasheets:

9ZX21501BKLFT Overview


In it, there are 64 terminations. Clock program provides 3.3V volts. In order to run 260, the peak reflow temperature of this part is taken into account. A maximum supply voltage (Vsup) is reached at 3.465V. Keeping Vsup above 3.135V is necessary for normaloperation. Of the part, there are 2006 publications. Surface Mount is recommended for mounting. With 64 pins, the device is designed. There are 64 pins on it. Minimum working temperature for this device must not be less than 0°C. Under 70°C degrees Celsius, the operating temperature should be maintained. Circuits application is a member of the Clock Drivers family. You can find parts related to the 9ZX family based on the 9ZX family. A logic IC of type PLL BASED CLOCK DRIVER is used in it.

9ZX21501BKLFT Features


Peak Reflow Temperature (Cel): 260
with 64 Pins
Logic IC Type: PLL BASED CLOCK DRIVER


9ZX21501BKLFT Applications


There are a lot of Integrated Device Technology (IDT)
9ZX21501BKLFT application specific timer applications.


  • Routers
  • Ethernet switch/router
  • PCI Express 2.0/3.0
  • Broadcast video/audio timing
  • Processor and FPGA clocking
  • Any-frequency clock conversion
  • MSAN/DSLAM/PON
  • Fibre Channel, SAN
  • Telecom line cards
  • 1 GbE and 10 GbE
