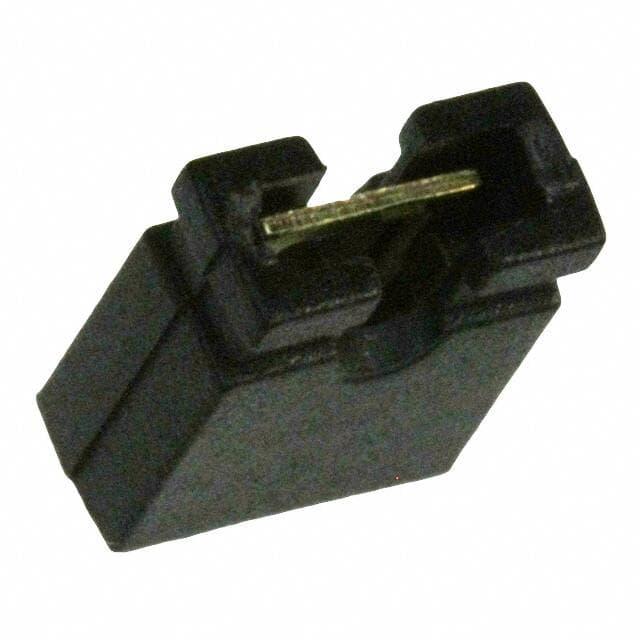

3M 969102-0000-DA

Manufacturer No:

969102-0000-DA

Manufacturer:

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

969102-0000-DA information

3M 969102-0000-DA technical specifications, attributes, parameters and parts with similar specifications to 3M 969102-0000-DA.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Plating
Gold

Housing Material
Polybutylene Terephthalate (PBT)

Number of Positions or Pins (Grid)
2 (1 x 2)

Packaging
Bulk

Series
969

Published
2009

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Through Hole

Type
Open Top

Number of Positions
2

Max Operating Temperature
105°C

Min Operating Temperature
-25°C

Color
Black

Number of Rows
1

Gender
Female Sockets

Voltage - Rated
1kV

Current Rating (Amps)
2A

Pitch
0.100 2.54mm

Orientation
Straight

Depth
2.4mm

Current Rating
2A

Contact Finish
Gold

Housing Color
Black

Insulation Resistance
500MOhm

Max Current Rating
2A

Height
0.236 6.00mm

Length
5mm

Contact Finish Thickness
3.94?in 0.10?m

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for 3M 969102-0000-DA.

ConflictMineralStatement:

3m-29259-conflictmineralstatement-2841.pdf

3M Shunts, Jumpers 969102-0000-DA are a reliable and cost-effective solution for making electrical connections. These shunt jumpers are designed to provide a secure connection between two points in an electrical circuit. They are made from high-quality materials and feature a black gold finish for superior corrosion resistance. The .1" size makes them ideal for use in tight spaces.

Features

? Made from high-quality materials for superior performance and reliability
? Black gold finish for superior corrosion resistance
? .1" size for use in tight spaces
? Easy to install and remove
? Cost-effective solution for making electrical connections

Application

3M Shunts, Jumpers 969102-0000-DA are ideal for use in a variety of applications, including automotive, industrial, and consumer electronics. They can be used to make electrical connections in tight spaces, such as in circuit boards, wiring harnesses, and other electrical components. They are also suitable for use in a variety of other applications, such as in medical devices, telecommunications, and aerospace.
