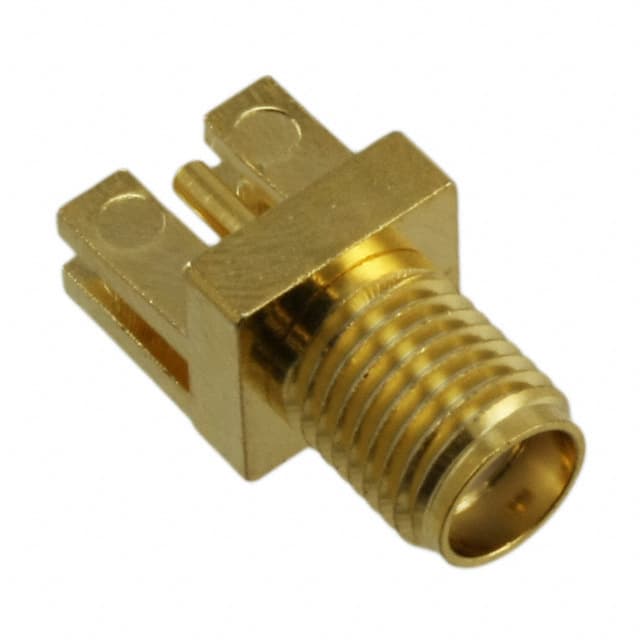

Winchester 961E504

Manufacturer No:

961E504

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded 50Ohm Tray SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -40°C~65°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

961E504 information

Winchester 961E504 technical specifications, attributes, parameters and parts with similar specifications to Winchester 961E504.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Board Edge, End Launch

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-40°C~65°C

Packaging
Tray

Series
E-Snap?

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Threaded

Reach Compliance Code
unknown

Impedance
50Ohm

Connector Style
SMA

Number of Ports
1

Frequency (Max)
12.5GHz

Mating Cycles
500

Contact Termination
Solder

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 961E504.

Datasheets:

winchesterinterconnect-910a204m-datasheets-9890.pdf

winchesterinterconnect-961e504-datasheets-0636.pdf

961E504 Overview

A Jack, Female Socket package is included with it.Board Edge, End Launch indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the E-Snap? Series.With 1 ports, it is capable of managing a wide range of tasks.Operating temperature is set to -40°C~65°C.

961E504 Features

E-Snap? series

961E504 Applications

There are a lot of Winchester Interconnect
961E504 Coaxial Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
