Grayhill Inc. 95C05B3GWRT

Manufacturer No:

95C05B3GWRT

Manufacturer:

Grayhill Inc.

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

95C05B3GWRT information

Grayhill Inc. 95C05B3GWRT technical specifications, attributes, parameters and parts with similar specifications to Grayhill Inc. 95C05B3GWRT.

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Brass, Silver, Stainless Steel

Contact Plating
Silver

Mount
Surface Mount

Mounting Type
Surface Mount

Actuator Material
Liquid Crystal Polymer (LCP)

Operating Temperature
-25°C~70°C

Packaging
Tape & Reel (TR)

Series
95C

Published
2012

JESD-609 Code
e4

Feature
Tactile Feedback

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Gull Wing

ECCN Code
EAR99

HTS Code
8536.50.90.40

Voltage - Rated DC
12V

Packing Method
TAPE AND REEL

Orientation
Straight

Depth
6.12mm

Termination Style
Gull Wing

Actuator Type
Standard

Switch Function
Off-Mom

Contact Resistance
100mOhm

Contact Current(DC)-Max
0.05A

Max Current Rating
50mA

Electrical Life
1e+06 cycles

Throw Configuration
SPST

Illumination
Non-Illuminated

Max Voltage Rating (DC)
12V

Mechanical Life
1,000,000 Cycles

Switch Type
KEYPAD SWITCH

Contact Current Rating
50mA

Operating Force
160gf

Illumination Type
Illuminated, Non-Illuminated

Actuator Orientation
Top Actuated

Contact (DC) Max Rating R Load
.05A@12VDC

Outline
5.20mm x 5.20mm

Contact Rating @ Voltage
0.05A @ 12VDC

Switch Travel
0.25mm

Actuator Height off PCB, Vertical
1.50mm

Number of Switches
1

Length
5.2mm

Body Height
1.49mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for Grayhill Inc. 95C05B3GWRT.

Description:

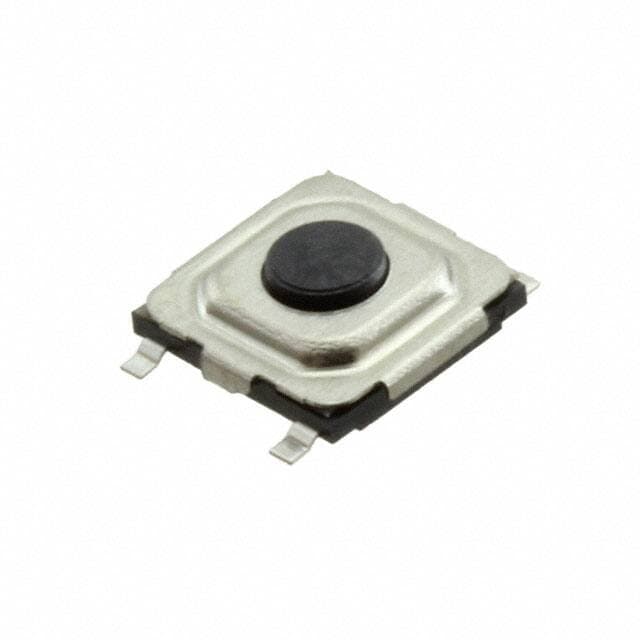

The Grayhill 95C05B3GWRT is a tactile switch with a single pole single throw (SPST) configuration. It has a round button with gull wing terminals and is designed for surface mount technology (SMT) applications. It has a maximum current rating of 0.05A and a maximum voltage rating of 12VDC. It has a force of 1.57N and is RoHS compliant.

Features:

? SPST configuration
Round button with gull wing terminals
? Designed for SMT applications
? Maximum current rating of 0.05A
? Maximum voltage rating of 12VDC
? Force of 1.57N
? RoHS compliant

Applications:

The Grayhill 95C05B3GWRT tactile switch is suitable for a wide range of applications, including consumer electronics, automotive, medical, and industrial control. It can be used for power, reset, and other control functions.
