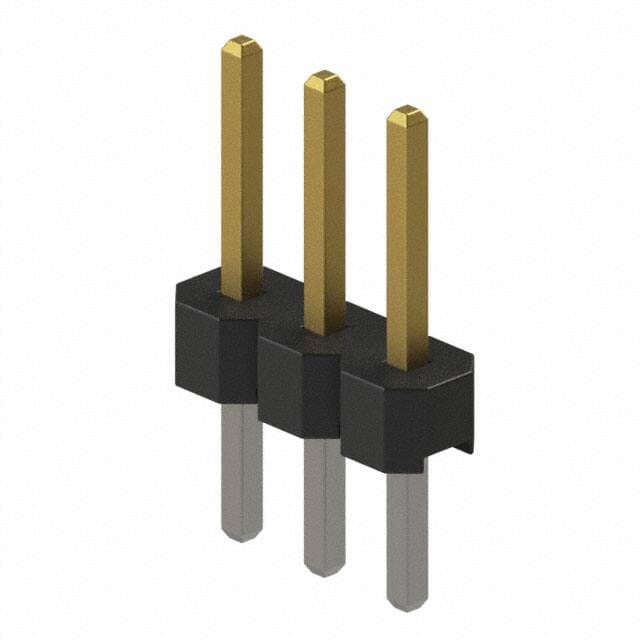

3M 951103-8622-AR
3M 951103-8622-AR

3M 951103-8622-AR

Manufacturer No:

951103-8622-AR

Manufacturer:

3M

Package:

Description:

951 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 3-Position Board to Board 0.060 1.52mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

951103-8622-AR information

3M 951103-8622-AR technical specifications, attributes, parameters and parts with similar specifications to 3M 951103-8622-AR.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Thermoplastic
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • 951
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 3
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Black
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 1kV
  • Fastening Type
  • Push-Pull
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2mm
  • Orientation
  • Straight
  • Depth
  • 2mm
  • Insulation Height
  • 0.060 1.52mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Current Rating
  • 2A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Contact Length - Post
  • 0.110 2.79mm
  • Shrouding
  • Unshrouded
  • Number of Contacts
  • 3
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.173 4.40mm
  • Contact Gender
  • Male
  • Housing Color
  • Black
  • Lead Length
  • 2.8mm
  • Overall Contact Length
  • 0.343 8.70mm
  • Contact Resistance
  • 20mOhm
  • Max Current Rating
  • 1A
  • Mating Post Length
  • 4.4mm

Download datasheets and manufacturer documentation for 3M 951103-8622-AR.

Datasheets:

ConflictMineralStatement:

951103-8622-AR Overview


Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the 951 Series, it belongs to the range of products of that series.A temperature below 125°C is best for using it.The device must run at -55°C degrees.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.

951103-8622-AR Features


951 series


951103-8622-AR Applications


There are a lot of 3M
951103-8622-AR Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
