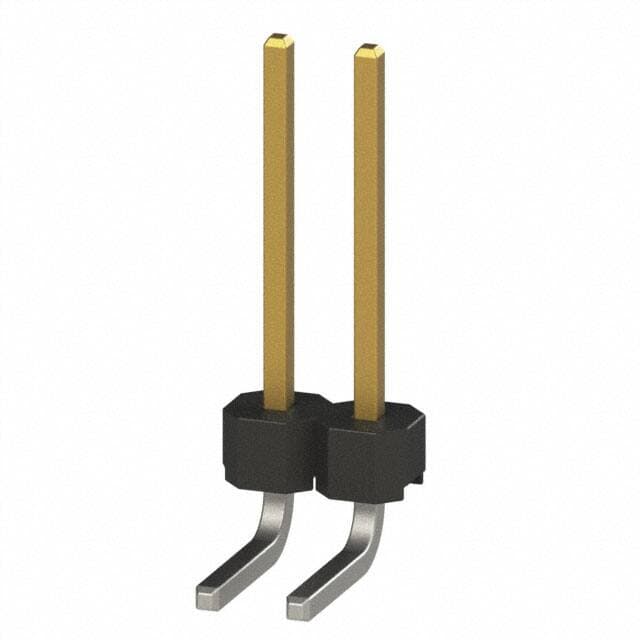

3M 951102-7722-AR
3M 951102-7722-AR

3M 951102-7722-AR

Manufacturer No:

951102-7722-AR

Manufacturer:

3M

Package:

Description:

951 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 2-Position Board to Board 0.079 2.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

951102-7722-AR information

3M 951102-7722-AR technical specifications, attributes, parameters and parts with similar specifications to 3M 951102-7722-AR.

  • Type
  • Parameter
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Thermoplastic
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • 951
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 2
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 1
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2.0066mm
  • Insulation Height
  • 0.079 2.00mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Contact Length - Post
  • 0.110 2.79mm
  • Shrouding
  • Unshrouded
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.305 7.75mm
  • Contact Gender
  • Male
  • Lead Length
  • 2.8mm
  • Insulation Resistance
  • 500MOhm
  • Mating Post Length
  • 7.5mm
  • Contact Finish Thickness - Mating
  • Flash
  • Contact Finish Thickness - Post
  • 39.4?in 1.00?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M 951102-7722-AR.

Datasheets:

ConflictMineralStatement:

951102-7722-AR Overview


Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 951 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.

951102-7722-AR Features


951 series


951102-7722-AR Applications


There are a lot of 3M
951102-7722-AR Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
