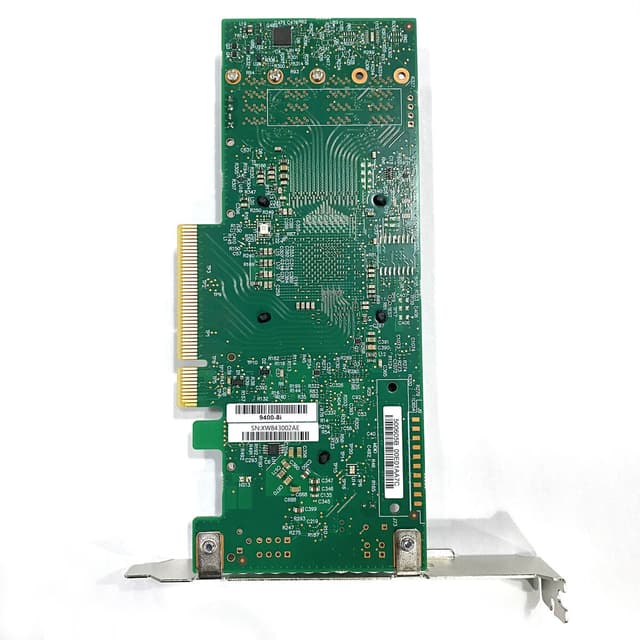

Broadcom 9400-8I

Manufacturer No:

9400-8I

Manufacturer:

Broadcom

Package:

Description:

9400 Series Tri-Mode Storage HBAs

Quantity:

Delivery:

Payment:

In Stock :1500

Price not displayed? Please send an RFQ, and we will respond immediately.

9400-8I information

Broadcom 9400-8I technical specifications, attributes, parameters and parts with similar specifications to Broadcom 9400-8I.

Type
Parameter

Ports
8 internal

Connectors
Two (x4) SFF-8643

Storage Interface Support
SAS, SATA, NVMe (PCIe)

Max NVMe Direct Attach Devices
Two x4, Four x2

Max Devices Per Controller
SAS/SATA: 1024 NVMe: 24

I/O Processor / SAS Controller
SAS3408

Host Bus Type
PCIe 3.1 x8

Typical Power
10.05W

Physical Dimensions
6.127in x 2.712in(155.65 mm x 68.90 mm)

Cable Support
Passive Copper

MTBF (Calculated)
>4,500,000 hours at 40°C

Operating Voltage
+12V +/-8%; 3.3V +/-9%

Hardware Warranty
3 years; with advanced replacement option

Download datasheets and manufacturer documentation for Broadcom 9400-8I.

Broadcom 9400-8i Datasheet:

0e576308-7442-4057-8ac2-e6105e4a499e.pdf

Quick Installation Guide :

1409a486-3614-4e2a-8f41-2ac0d225543a.pdf

Overview:

Industry’s First HBA with Tri-Mode SerDes Technology

Broadcom enables high performance storage connectivity and flexible system designs that support any combination of NVMe, SAS and SATA devices with the industry’s first HBA with Tri-Mode SerDes. The Tri-Mode HBAs expand Broadcom’s industry leading family of 12Gb/s SAS HBAs with 8 and 16 port internal, external and combination Tri-Mode port options.

NVMe Performance Gains for Storage

The Tri-Mode Storage HBAs bring NVMe performance benefits to the storage tier by providing connectivity and data protection that HBAs have offered for over 20 years for SAS/SATA interfaces. Based on the singlecore SAS3516, SAS3416 or SAS3408 Tri-Mode Storage I/O controllers (IOC), these HBAs provide bandwidth and IOPS performance increase compared to the previous generation and are ideal for high-end servers utilizing internal storage or connecting to large-scale external storage enclosures.

Endless design flexibility using Tri-Mode Controllers

Broadcom Tri-Mode SerDes Technology enables the operation of NVMe, SAS, or SATA storage devices in a single drive bay. A single controller can operate in all three modes concurrently servicing NVMe, SAS, or SATA drives. The controller negotiates between the speeds and protocols to seamlessly work with any of the three types of storage devices. TriMode support provides a non-disruptive way to evolve existing data center infrastructure. By upgrading to a Tri-Mode HBA, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations.

Features and Benefits:

Applications

High-port count SAS/SATA/NVMe adapters for direct attached high connectivity applications
Tri-Mode connectivity enabling maximum data center flexibility
Flexible solutions for cloud computing
External storage requiring high connectivity SAS/SATA interface for host or drive side connect

Key Features

Tri-Mode Storage Interface Ports

SFF-8680 Bay

x1 SAS
x1 SATA
x2 SAS (Multi Link)
Two x1 SAS (Dual port using MPIO)

SFF-8639 (U.2) Bay

x2, x4 NVMe

Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
Up to 8 storage interface PCIe links. Each link supporting x4 or x2 link widths up to 8.0 GT/s (PCIe Gen3) per lane
SFF-9402 Compliant, Connector Pin-out
SFF-8485 Compliant, SGPIO
PCIe 3.1 Host Interface

Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex
Lane and polarity reversal
Variable PCIe bandwidth negotiation
