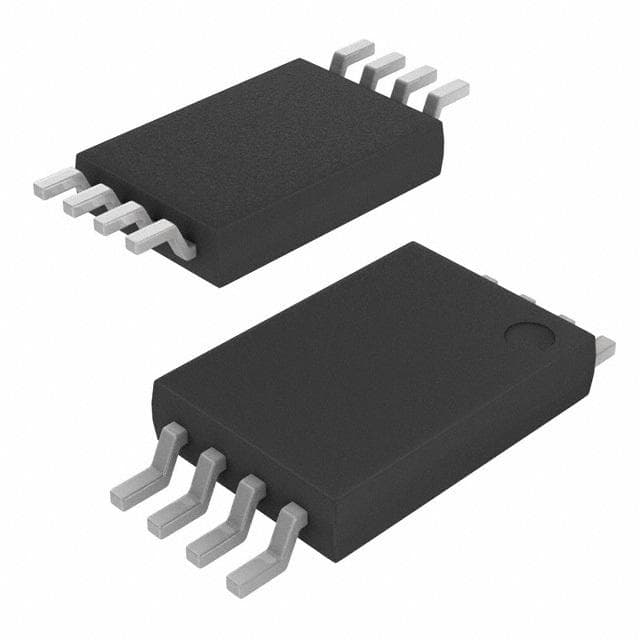

Renesas 9112AG-16LF
Manufacturer No:
9112AG-16LF
Manufacturer:
Package:
TSSOP
Description:
3.3V 133MHz Clock Generators 8 Pins TSSOP 8 Terminals
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
9112AG-16LF information
Renesas 9112AG-16LF technical specifications, attributes, parameters and parts with similar specifications to Renesas 9112AG-16LF.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Number of Pins
- 8
- Published
- 2007
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.65mm
- Pin Count
- 8
- Operating Supply Voltage
- 3.3V
- Temperature Grade
- COMMERCIAL
- Number of Circuits
- 1
- Min Supply Voltage
- 2.97V
- Nominal Supply Current
- 40mA
- Frequency (Max)
- 133MHz
- Input
- Clock
- Max I(ol)
- 0.025 A
- PLL
- Yes
- Same Edge Skew-Max (tskwd)
- 0.25 ns
- Number of True Outputs
- 5
- Length
- 3.1mm
- Width
- 4.4mm
- Thickness
- 1mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas 9112AG-16LF.
9112AG-16LF Overview
TSSOP contains this Clock PLL. When reflowed, this frequency generator can withstand a maximum temperature of 260. As a result, frequency synthesizers can be found to contain 8 terminations. For this clock generator ic, a voltage of 3.3V is required. This Clock PLL will be fed by Clock as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 133MHz, this clock-based RF synthesizer is suitable for a variety of applications. In particular, this clock PLL is designed to be used with microprocessors. There is a 8 pin that is available on the digital clock generator. Despite its low operating temperature, this clock generator has 0°C operations. There is even a possibility that this clock generator ic will last even when the temperature is 70°C. The maximum supply voltage that clock generator can handle is 3.3V. At 0.25 ns Max, this analog clock generator exhibits low timing skew. There are 5 pins that are configured to enable high true output on this analog clock generator. There can be no voltage higher than 3.63V when powering this frequency generator. This RF synthesizer can handle voltages as low as 2.97V.
9112AG-16LF Features
Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
5 true outputs
9112AG-16LF Applications
There are a lot of Integrated Device Technology (IDT)
9112AG-16LF Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
User Guide
