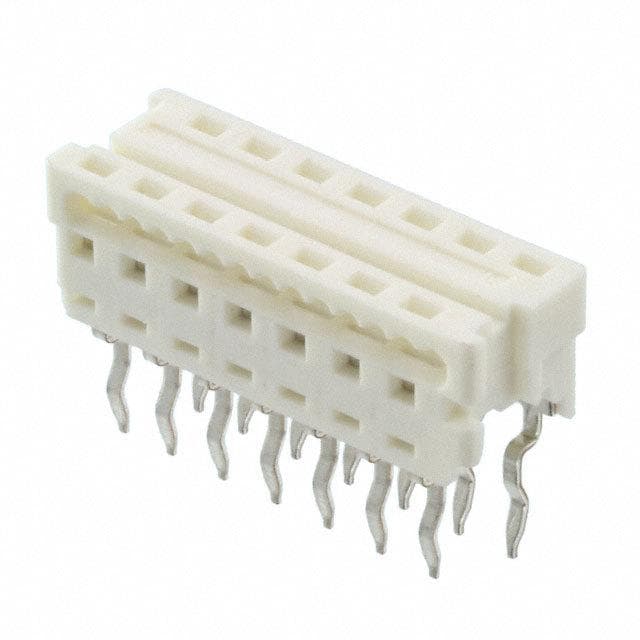

MOLEX 90584-1314
Manufacturer No:
90584-1314
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
90584-1314 information
MOLEX 90584-1314 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 90584-1314.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Material
- Bronze
- Contact Plating
- Tin
- Mount
- Press Fit, Through Hole
- Number of Pins
- 8
- Housing Material
- Polyester
- Published
- 2010
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Termination
- Through Hole
- ECCN Code
- EAR99
- Connector Type
- Cable, IDC
- Number of Positions
- 14
- Max Operating Temperature
- 105°C
- Min Operating Temperature
- -40°C
- Color
- White
- Number of Rows
- 2
- Gender
- Female
- Voltage - Rated
- 250V
- Additional Feature
- LOW PROFILE
- Subcategory
- Headers and Edge Type Connectors
- Contact Finish - Mating
- TIN
- MIL Conformance
- NO
- IEC Conformance
- NO
- Filter Feature
- NO
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Pitch
- 1.27mm
- Total Number of Contacts
- 14
- Orientation
- Straight
- Current Rating
- 1.2A
- Number of Conductors
- ONE
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Row Spacing - Mating
- 2.54 mm
- Number Of PCB Rows
- 2
- Lead Pitch
- 1.27mm
- PCB Contact Pattern
- STAGGERED
- UL Flammability Code
- 94V-0
- Contact Style
- IDC
- Contact Resistance
- 15mOhm
- Insulation Resistance
- 1000000000Ohm
- Body/Shell Style
- RECEPTACLE
- Dielectric Withstanding Voltage
- 750VAC V
- Wire Gauge (Max)
- 28 AWG
- Wire Gauge (Min)
- 26 AWG
