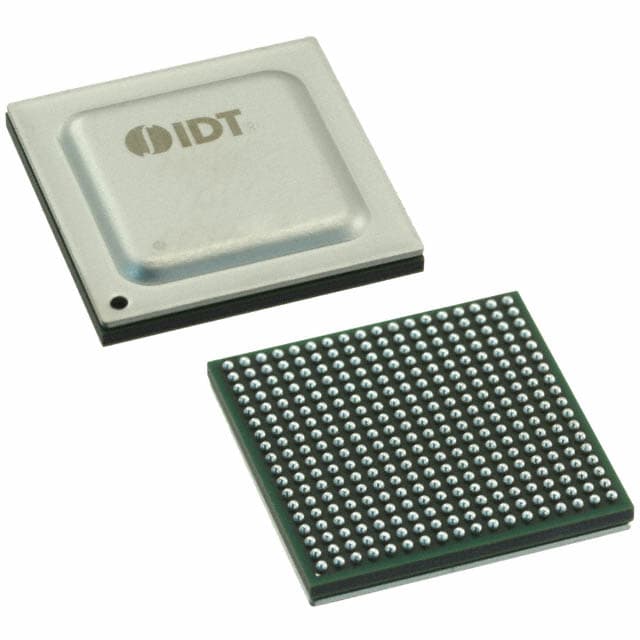

Renesas 89HPES24T6G2ZCALGI

Manufacturer No:

89HPES24T6G2ZCALGI

Manufacturer:

Renesas

Package:

FCBGA

Description:

1mm 13.3V Copper, Silver, Tin Specialized Interface IC 324 Pin 1V FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

89HPES24T6G2ZCALGI information

Renesas 89HPES24T6G2ZCALGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 89HPES24T6G2ZCALGI.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Package / Case
FCBGA

Number of Pins
324

Published
1999

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
324

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Bus Controllers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
1.1V

Power Supplies
13.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
0.9V

Interface
PCI Express

uPs/uCs/Peripheral ICs Type
BUS CONTROLLER, PCI

Clock Frequency
125MHz

Bus Compatibility
PCI

Height
3.27mm

Length
19mm

Width
19mm

Thickness
3.27mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 89HPES24T6G2ZCALGI.

Datasheets:

integrateddevicetechnology-89hpes24t6g2zcalgi-datasheets-3177.pdf

89HPES24T6G2ZCALGI Overview

It's a good fit for the FCBGA package.There are 324 terminations on it.Keep in mind that this device should be set to 1V.There are a total of 324 pins on it.324 pins are used for operation.It is mounted by Surface Mount.It operates at a minimum working temperature of 0°C to ensure reliability.The maximum value of 70°C assures that the part runs consistently.The electronic components is from Bus Controllers family.The uPs/uCs/Peripheral IC this device incoporates is BUS CONTROLLER, PCI.It is capable of delivering voltage at 13.3V.For the performance, its output frequency should not exceed 125MHz.
