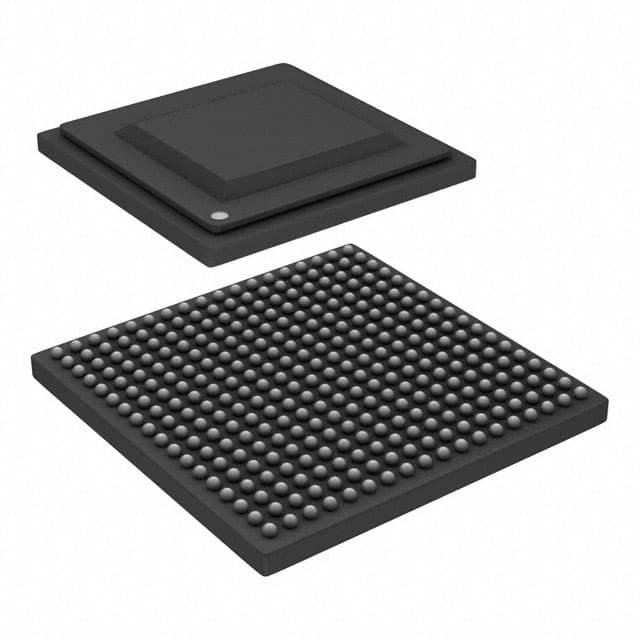

Renesas 89H16NT16G2ZCHLG

Manufacturer No:

89H16NT16G2ZCHLG

Manufacturer:

Renesas

Package:

FCBGA

Description:

1mm Specialized Interface IC 324 Pin 1V FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

89H16NT16G2ZCHLG information

Renesas 89H16NT16G2ZCHLG technical specifications, attributes, parameters and parts with similar specifications to Renesas 89H16NT16G2ZCHLG.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Package / Case
FCBGA

Number of Pins
324

Published
1999

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
324

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO OPERATES AT 100 MHZ

HTS Code
8542.39.00.01

Subcategory
Bus Controllers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
1.1V

Temperature Grade
COMMERCIAL

Interface
PCI Express

Number of Ports
16

uPs/uCs/Peripheral ICs Type
BUS CONTROLLER, PCI

Supply Current-Max
3300mA

Frequency (Max)
125MHz

Data Rate
128 Gbps

Bus Compatibility
I2C; ISA; VGA

Length
19mm

Height Seated (Max)
2.88mm

Width
19mm

Thickness
3.02mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 89H16NT16G2ZCHLG.

Datasheets:

integrateddevicetechnology-89h16nt16g2zchlg-datasheets-5017.pdf

89H16NT16G2ZCHLG Overview

It is appropriate for the device to use the FCBGA package.It has 324 terminations.It is recommended that you set this device to 1V.324 pins are on it in total.In order to operate, we use the 324 pins.The mount is Surface Mount.It is designed to work at a minimum working temperature of 0°C to ensure reliability.In order to maintain consistency, a maximum value of 70°C is recommended.Electronic components are of the Bus Controllers family.This interface IC operates at a voltage of 3.3V.This device consists of BUS CONTROLLER, PCI UPs, UCs, or peripheral ICs.This device is also capable of finding ALSO OPERATES AT 100 MHZ.The device is equipped with a total of 16 ports.
