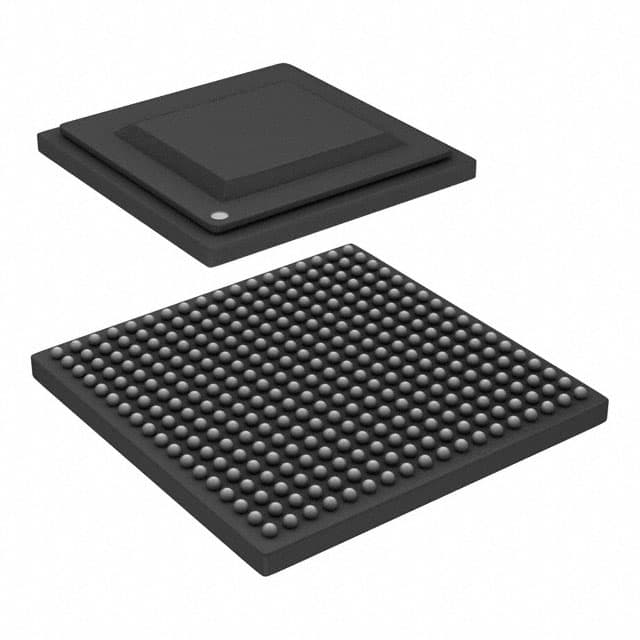

Renesas 89H16NT16G2ZBHLGI

Manufacturer No:

89H16NT16G2ZBHLGI

Manufacturer:

Renesas

Package:

FCBGA

Description:

1mm Copper, Silver, Tin Specialized Interface IC 324 Pin 1V FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

89H16NT16G2ZBHLGI information

Renesas 89H16NT16G2ZBHLGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 89H16NT16G2ZBHLGI.

Type
Parameter

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Package / Case
FCBGA

Number of Pins
324

Published
1999

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
324

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 100 MHZ

HTS Code
8542.39.00.01

Subcategory
Bus Controllers

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
1.1V

Temperature Grade
INDUSTRIAL

Interface
PCI Express

Number of Ports
16

uPs/uCs/Peripheral ICs Type
BUS CONTROLLER, PCI

Supply Current-Max
3300mA

Frequency (Max)
125MHz

Data Rate
128 Gbps

Bus Compatibility
I2C; ISA; VGA

Length
19mm

Height Seated (Max)
2.88mm

Width
19mm

Thickness
3.02mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 89H16NT16G2ZBHLGI.

Datasheets:

integrateddevicetechnology-89h16nt16g2zbhlgi-datasheets-6357.pdf

89H16NT16G2ZBHLGI Overview

FCBGA is an appropriate package for this device.The termination count on it is 324.Make sure this device is set to 1V.There are a total of 324 pins on the device.Operation is carried out through the 324 pins.This is mounted by Surface Mount.The device operates at a minimum working temperature of -40°C in order to ensure its reliability.In addition to ensuring the consistency of the part, 85°C is the maximum value possible.Electronic components in this system belong to the Bus Controllers family.It is designed to operate at 3.3V supply voltage, with the interface IC conducting at this voltage.In this device, there are BUS CONTROLLER, PCI uPs, uCs, or peripheral ICs.With this device, you can also find ALSO OPERATES AT 100 MHZ.A total of 16 ports are present on the device.

89H16NT16G2ZBHLGI Features

Set the part at 1V volts
BUS CONTROLLER, PCI of uPs/uCs/Peripheral ICs Type

89H16NT16G2ZBHLGI Applications

There are a lot of Integrated Device Technology (IDT)
89H16NT16G2ZBHLGI Specialized Interface ICs applications.

Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and
nonfault-protected)
