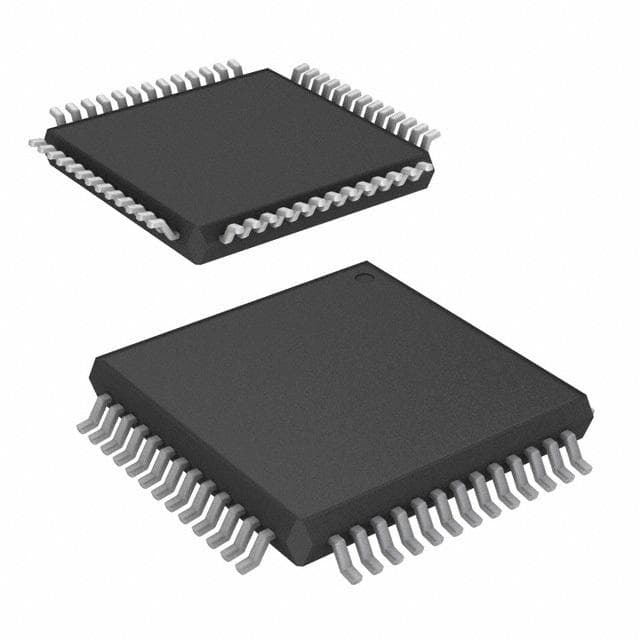

Renesas 873991AY-147LF

Manufacturer No:

873991AY-147LF

Manufacturer:

Renesas

Package:

LQFP

Description:

3.3V 480MHz Clock Generators 52 Pins LQFP 52 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

873991AY-147LF information

Renesas 873991AY-147LF technical specifications, attributes, parameters and parts with similar specifications to Renesas 873991AY-147LF.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
52

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
52

ECCN Code
EAR99

Max Operating Temperature
50°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
52

Qualification Status
Not Qualified

Power Supplies
3.3V

Number of Circuits
1

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Nominal Supply Current
150mA

Frequency (Max)
480MHz

Output Characteristics
OPEN-COLLECTOR

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.25 ns

Number of True Outputs
14

Length
10mm

Width
10mm

Thickness
1.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 873991AY-147LF.

Datasheets:

integrateddevicetechnology-873991ay147lf-datasheets-2082.pdf

873991AY-147LF Overview

Embedded in the LQFP package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 260 when reflowing. It contains a total of 52 terminations within RF synthesizer. This clock generator ic should receive a voltage of 3.3V. It is designed that the Clock PLL's input should be LVTTL. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 480MHz. In this IC, a 52-bit frequency generator is designed specifically for use in microprocessors. There are a number of 52 pins that are available on the clock generators. There are 0°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 50°C with a reduced performance. As such, it is often referred to as a kind of Clock Drivers clock PLL. Low timing skew is provided by this analog clock generator at maximum 0.25 ns. A analog clock generator with 14 true output enable pins is configured for this application. There is no point in supplying this frequency generator with a voltage higher than 3.465V. PLLs have a minimum supply voltage limit of 3.135V. Logic circuits containing this analog clock generator are commonly used in PLL BASED CLOCK DRIVER logic.

873991AY-147LF Features

Available in the LQFP
Supply voltage of 3.3V
14 true outputs

873991AY-147LF Applications

There are a lot of Integrated Device Technology (IDT)
873991AY-147LF Clock Generators applications.

1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
