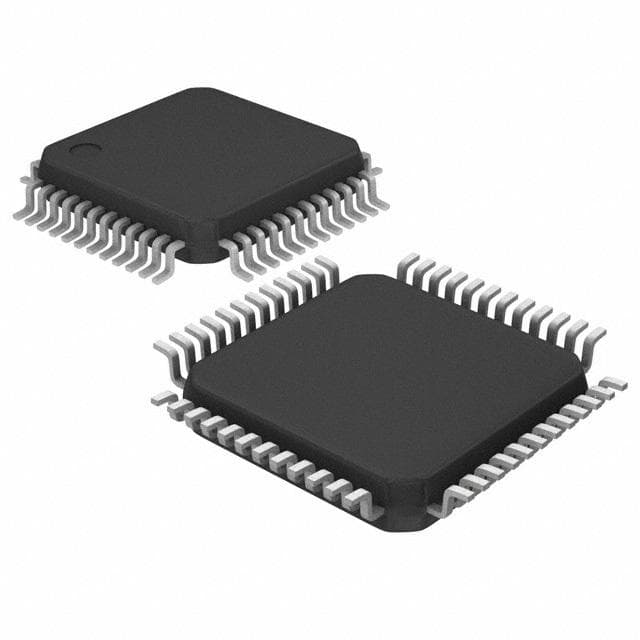

Renesas 8702BYLFT

Manufacturer No:

8702BYLFT

Manufacturer:

Renesas

Package:

LQFP

Description:

3.3V 250MHz Clock Generators 48 Pins LQFP 48 Terminals Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8702BYLFT information

Renesas 8702BYLFT technical specifications, attributes, parameters and parts with similar specifications to Renesas 8702BYLFT.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
LQFP

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO OPERATES AT MIXED 3.3V CORE AND 2.5V OUTPUT SUPPLY

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
48

JESD-30 Code
S-PQFP-G48

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
COMMERCIAL

Number of Circuits
1

Frequency (Max)
250MHz

Family
8702

Output Characteristics
3-STATE

Input
LVDS

Logic IC Type
LOW SKEW CLOCK DRIVER

Max I(ol)
0.027 A

Prop. Delay@Nom-Sup
3.6 ns

Propagation Delay (tpd)
3.6 ns

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
20

Length
7mm

Width
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 8702BYLFT.

Datasheets:

integrateddevicetechnology-8702bylft-datasheets-3222.pdf

8702BYLFT Overview

Clock ICs are packaged using the Tape & Reel (TR) method. In the LQFP package, there is an embedded clock generator. A maximum temperature of 260 can be sustained by this clock generator ic during reflowing. There are a total of 48 terminations in this file. A voltage of 3.3V should be applied to this electronic frequency generator. In this case, LVDS is designed to be the input of the clock generator. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 250MHz. There is a maximum voltage of 3.465V for this clock generator. An IC that generates clocks specifically for microprocessors, this clock PLL is 48-bits in si48e. In addition to having an impressive low-temperature performance, this clock device can perform 0°C operations simultaneously. This RF synthesizer can last with attenuated performance at 70°C. A Clock Drivers clock generator is essentially what this device is. With ALSO OPERATES AT MIXED 3.3V CORE AND 2.5V OUTPUT SUPPLY, this clock generator produces better clock signals. The timing skew of this frequency synthesizer is low at 0.2 nsmax. There are 20 pins configured for enabling high true outputs on this clock generator. 8702-family clock generators are similar. In LOW SKEW CLOCK DRIVER logic circuits, this electronic frequency generator is used primarily as a clock component.

8702BYLFT Features

Available in the LQFP
Supply voltage of 3.3V
20 true outputs

8702BYLFT Applications

There are a lot of Integrated Device Technology (IDT)
8702BYLFT Clock Generators applications.

Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
