Winchester 864B509

Manufacturer No:

864B509

Manufacturer:

Winchester

Package:

Description:

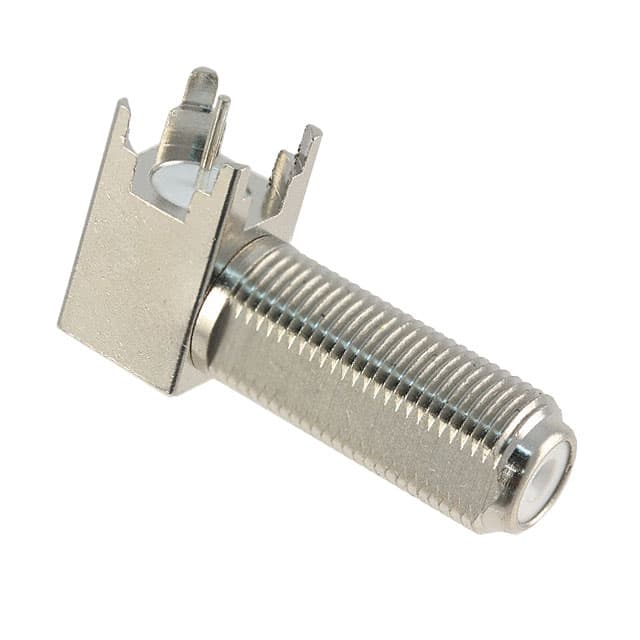

Jack, Female Socket Threaded Non-Constant Tray F Type Solder 1 Port Polypropylene (PP) -40°C~65°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

864B509 information

Winchester 864B509 technical specifications, attributes, parameters and parts with similar specifications to Winchester 864B509.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
NOT SPECIFIED

Mounting Type
Through Hole, Right Angle

Dielectric Material
Polypropylene (PP)

Body Material
Brass

Operating Temperature
-40°C~65°C

Packaging
Tray

Published
2013

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Threaded

Contact Finish - Mating
NOT SPECIFIED

Housing Color
Silver

Impedance
Non-Constant

Connector Style
F Type

Number of Ports
1

Frequency (Max)
500MHz

Mating Cycles
500

Contact Termination
Solder

Body Finish
Nickel

Download datasheets and manufacturer documentation for Winchester 864B509.

Datasheets:

winchesterinterconnect-864b509-datasheets-3390.pdf

864B509 Overview

This product is packaged in a Jack, Female Socket box.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -40°C~65°C.
