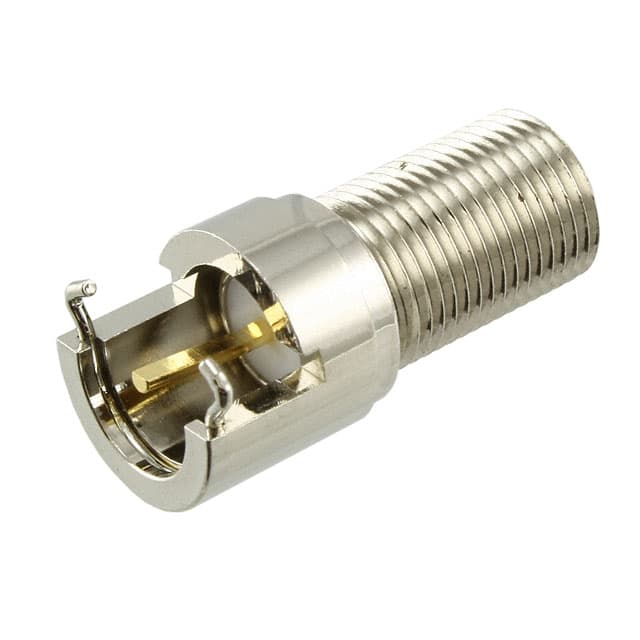

Winchester 861V509ER

Manufacturer No:

861V509ER

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded Non-Constant Tray F Type Solder 1 Port Polytetrafluoroethylene (PTFE) -40°C~65°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

861V509ER information

Winchester 861V509ER technical specifications, attributes, parameters and parts with similar specifications to Winchester 861V509ER.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Board Edge, End Launch

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-40°C~65°C

Packaging
Tray

Series
V-Bite®

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Threaded

Reach Compliance Code
unknown

Housing Color
Silver

Impedance
Non-Constant

Connector Style
F Type

Number of Ports
1

Frequency (Max)
1GHz

Mating Cycles
500

Contact Termination
Solder

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 861V509ER.

Datasheets:

winchesterinterconnect-861v509er6-datasheets-7079.pdf

861V509ER Overview

The product is packaged in Jack, Female Socket.Board Edge, End Launch is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the V-Bite® Series, it can be found in this category.A variety of tasks can be managed via its 1 ports.The device is operating at -40°C~65°C Operating Temperature.
