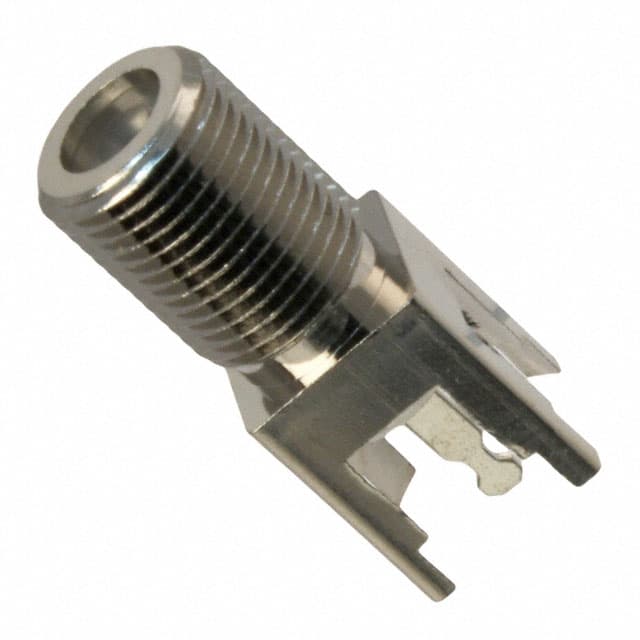

Winchester 861A509

Manufacturer No:

861A509

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded Non-Constant Bulk F Type Solder Tab 1 Port Polypropylene (PP) -40°C~65°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

861A509 information

Winchester 861A509 technical specifications, attributes, parameters and parts with similar specifications to Winchester 861A509.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
NOT SPECIFIED

Mounting Type
Through Hole

Dielectric Material
Polypropylene (PP)

Body Material
Brass

Operating Temperature
-40°C~65°C

Packaging
Bulk

Published
2013

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
500V

Fastening Type
Threaded

Contact Finish - Mating
NOT SPECIFIED

Housing Color
Silver

Impedance
Non-Constant

Connector Style
F Type

Number of Ports
1

Frequency (Max)
500MHz

Mating Cycles
500

Contact Termination
Solder Tab

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 861A509.

Datasheets:

winchesterinterconnect-864b509-datasheets-3390.pdf

861A509 Overview

Packaging is Jack, Female Socket.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.A variety of tasks can be performed using its 1 ports.Devices operate at -40°C~65°C operating temperatures.

861A509 Features

861A509 Applications

There are a lot of Winchester Interconnect
861A509 Coaxial Connectors applications.

Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
