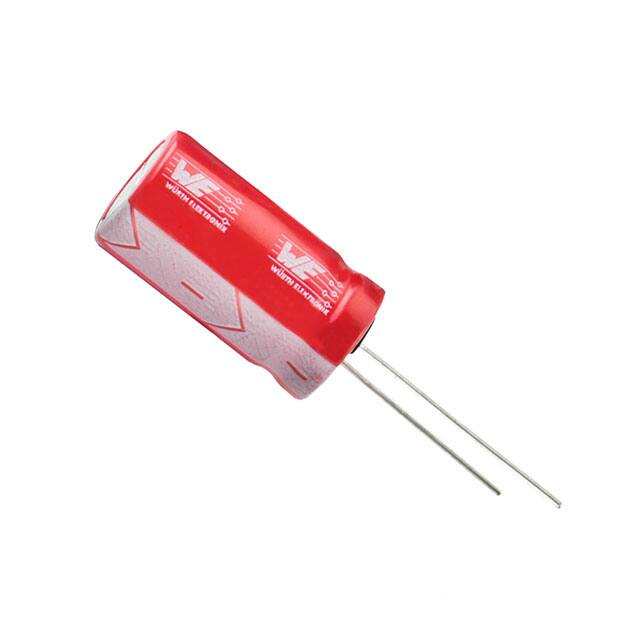

WURTH 860131278007
WURTH 860131278007

WURTH 860131278007

Manufacturer No:

860131278007

Manufacturer:

WURTH

Package:

Radial, Can

Description:

WCAP-ATET 22?F Capacitor ±20% Tape & Box (TB) Through Hole 160mA 0.512Dia 13.00mm -25°C~125°C Polar 5.0038mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

860131278007 information

WURTH 860131278007 technical specifications, attributes, parameters and parts with similar specifications to WURTH 860131278007.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -25°C~125°C
  • Packaging
  • Tape & Box (TB)
  • Series
  • WCAP-ATET
  • Size / Dimension
  • 0.512Dia 13.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -25°C
  • Applications
  • General Purpose
  • Voltage - Rated
  • 350V
  • Capacitance
  • 22?F
  • Voltage - Rated DC
  • 350V
  • Lead Pitch
  • 5.0038mm
  • Polarity
  • Polar
  • Lead Spacing
  • 0.197 5.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 125°C
  • Ripple Current
  • 160mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ High Frequency
  • 244.8mA @ 100kHz
  • Diameter
  • 13mm
  • Height
  • 25mm
  • Height Seated (Max)
  • 1.043 26.50mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for WURTH 860131278007.

Datasheets:

Environmental Information:

860131278007 Overview


As far as the ripple current is concerned, it is 244.8mA @ 100kHz at full charge.As far as the ripple current is concerned, it is 160mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.043 26.50mm.This capacitor operates from a voltage - Rated DC of 350V.The operating temperature should be maintained at -25°C~125°C for high efficiency.

860131278007 Features


the ripple current is 244.8mA @ 100kHz.
the ripple current is 160mA @ 120Hz.
voltage - Rated DC of 350V
an operating temperature of -25°C~125°C


860131278007 Applications


There are a lot of Würth Elektronik
860131278007 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
