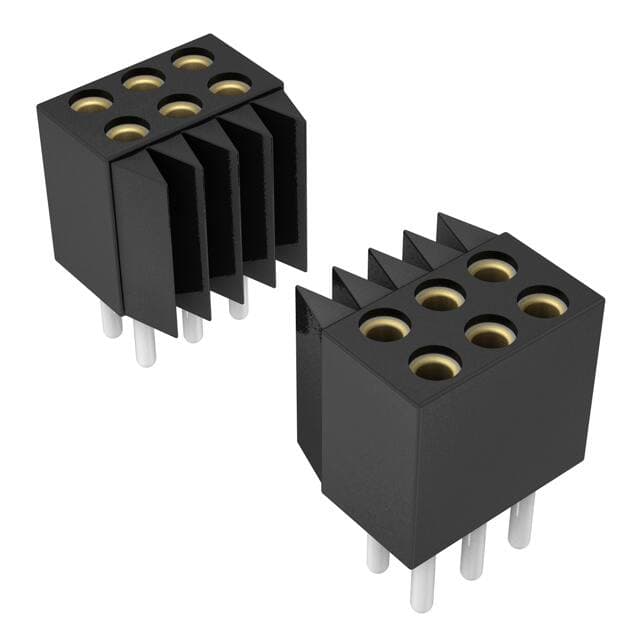

Preci-Dip 855-83-126-10-001101
Preci-Dip 855-83-126-10-001101

Preci-Dip 855-83-126-10-001101

Manufacturer No:

855-83-126-10-001101

Manufacturer:

Preci-Dip

Package:

Description:

3 Rows Socket Solder Beryllium Copper Through Hole Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 126 Positions Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

855-83-126-10-001101 information

Preci-Dip 855-83-126-10-001101 technical specifications, attributes, parameters and parts with similar specifications to Preci-Dip 855-83-126-10-001101.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Beryllium Copper
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Circular
  • Insulation Material
  • Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • 855
  • Published
  • 2012
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Socket
  • Number of Positions
  • 126
  • Number of Rows
  • 3
  • Fastening Type
  • Push-Pull
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Female Socket
  • Current Rating (Amps)
  • 1A
  • Terminal Pitch
  • 1.27mm
  • Insulation Height
  • 0.157 4.00mm
  • Style
  • Board to Board
  • Pitch - Mating
  • 0.050 1.27mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.466 inch
  • Row Spacing - Mating
  • 0.050 (1.27mm)
  • Contact Length - Post
  • 0.094 2.40mm
  • Number Of PCB Rows
  • 3
  • Contact Finish - Post
  • Tin
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.174 inch
  • Body Depth
  • 0.157 inch
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 10000000000Ohm
  • Mating Contact Pitch
  • 0.05 inch
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 700VAC V
  • PCB Contact Row Spacing
  • 1.27 mm
  • Durability
  • 500 Cycles
  • Contact Finish Thickness - Mating
  • 29.5?in 0.75?m
  • Length - Termination
  • 0.094 inch
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for Preci-Dip 855-83-126-10-001101.

Datasheets:

Environmental Information:

855-83-126-10-001101 Overview


Packaging is Socket.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 855 Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.

855-83-126-10-001101 Features


855 series


855-83-126-10-001101 Applications


There are a lot of Preci-Dip
855-83-126-10-001101 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
