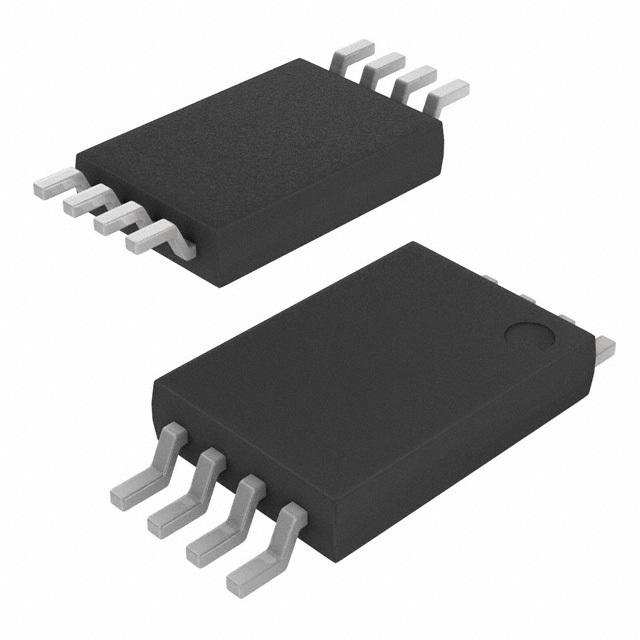

Renesas 844071AGLF
Manufacturer No:
844071AGLF
Manufacturer:
Package:
TSSOP
Description:
2.5V 170MHz Clock Generators 8 Pins TSSOP 8 Terminals
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
844071AGLF information
Renesas 844071AGLF technical specifications, attributes, parameters and parts with similar specifications to Renesas 844071AGLF.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Package / Case
- TSSOP
- Number of Pins
- 8
- Weight
- 157.991892mg
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- Additional Feature
- ALSO OPERATES AT 3.3V SUPPLY
- Subcategory
- Clock Generators
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 2.5V
- Terminal Pitch
- 0.65mm
- Pin Count
- 8
- Operating Supply Voltage
- 3.3V
- Temperature Grade
- COMMERCIAL
- Number of Circuits
- 1
- Max Supply Voltage
- 3.63V
- Min Supply Voltage
- 2.255V
- Operating Supply Current
- 135mA
- Nominal Supply Current
- 135mA
- uPs/uCs/Peripheral ICs Type
- CLOCK GENERATOR, OTHER
- Frequency (Max)
- 170MHz
- Input
- Crystal
- Primary Clock/Crystal Frequency-Nom
- 28.3MHz
- PLL
- Yes
- Duty Cycle (Max)
- 52 %
- Height
- 1mm
- Length
- 3.1mm
- Width
- 4.4mm
- Thickness
- 1mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas 844071AGLF.
844071AGLF Overview
Embedded in the TSSOP package is this Clock PLL. Frequency generator is capable of operating at a maximum temperature of 260 when reflowing. It contains a total of 8 terminations within RF synthesizer. This clock generator ic should receive a voltage of 2.5V. It is designed that the Clock PLL's input should be Crystal. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 170MHz. RF synthesizer is comprised of CLOCK GENERATOR, OTHER uPs, uCs, and peripheral ICs. In this IC, a 8-bit frequency generator is designed specifically for use in microprocessors. There are a number of 8 pins that are available on the clock generators. There are 0°C operations available on this frequency generator and it operates at low temperatures. It is possible for the clock generator ic to work at 70°C with a reduced performance. There is a maximum supply voltage of 3.3V that frequency generators can handle. As such, it is often referred to as a kind of Clock Generators clock PLL. A frequency synthesizer with ALSO OPERATES AT 3.3V SUPPLY features better clock signal output. 2 signal outputs maximi2e the output frequency. There is no point in supplying this frequency generator with a voltage higher than 3.63V. PLLs have a minimum supply voltage limit of 2.255V. To fully perform its function, time clock generator requires a supply current of 135mA.
844071AGLF Features
Available in the TSSOP
Supply voltage of 2.5V
Operating supply voltage of 3.3V
844071AGLF Applications
There are a lot of Integrated Device Technology (IDT)
844071AGLF Clock Generators applications.
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
- Media broadcast servers
