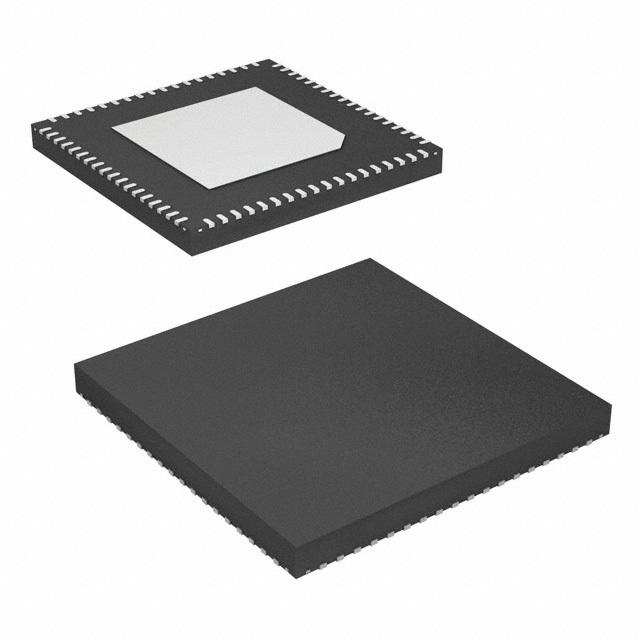

Renesas 8413S12BKILF

Manufacturer No:

8413S12BKILF

Manufacturer:

Renesas

Package:

QFN

Description:

3.3V 312.5MHz Clock Generators 72 Pins QFN 72 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8413S12BKILF information

Renesas 8413S12BKILF technical specifications, attributes, parameters and parts with similar specifications to Renesas 8413S12BKILF.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QFN

Number of Pins
72

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
72

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
CAN ALSO OPERATES AT 2.5V SUPPLY

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
72

Number of Outputs
14

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Operating Supply Current
86mA

Frequency (Max)
312.5MHz

Logic Function
Clock

Input
Crystal

Primary Clock/Crystal Frequency-Nom
25MHz

Max Duty Cycle
55 %

Length
10mm

Width
10mm

Thickness
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 8413S12BKILF.

Datasheets:

integrateddevicetechnology-8413s12bkilf-datasheets-8049.pdf

8413S12BKILF Overview

A Clock PLL is included with the QFN package. Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 72 terminations. Clock generator ics require a voltage of 3.3V. As the Clock PLL's input, Crystal is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 312.5MHz. It would take a maximum supply voltage of 3.465V to operate this time clock generator. It is a 72-bit IC that is designed for microprocessors specifically. The clock PLL has 72 pins that are available. A frequency generator with -40°C operations has an impressive low-temperature performance. At a temperature of 85°C, the clock generator ic can operate with attenuated performance. In terms of the supply voltage, PLL clock can handle 3.3V volts. This frequency synthesizer features CAN ALSO OPERATES AT 2.5V SUPPLY to produce better clock signals. The frequency synthesizer features 14 signal outputs to ensure as high a frequency as possible. For the clock time generator to function properly, 86mA of supply current must be provided. A RF synthesizer that combines logic function Clock for clocks with input data.

8413S12BKILF Features

Available in the QFN
Supply voltage of 3.3V
Operating supply voltage of 3.3V

8413S12BKILF Applications

There are a lot of Integrated Device Technology (IDT)
8413S12BKILF Clock Generators applications.

10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
Test equipment
