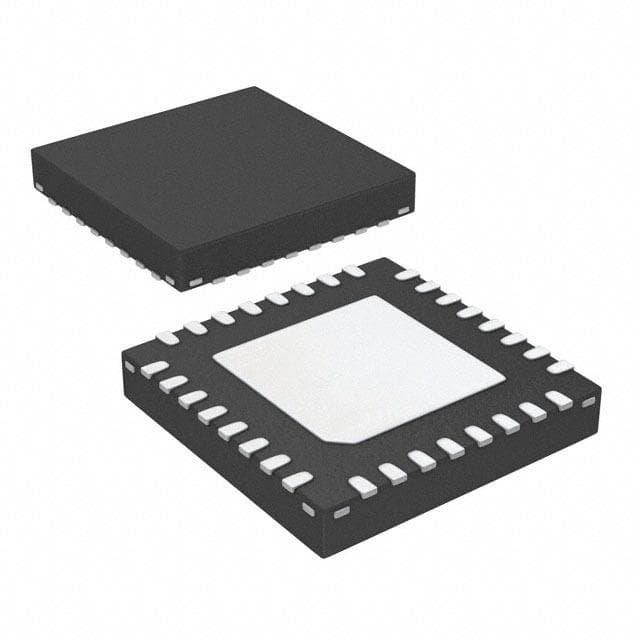

Renesas 8402015AKILF

Manufacturer No:

8402015AKILF

Manufacturer:

Renesas

Package:

Description:

3.3V 125MHz Clock Generators 32 Pins 32 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8402015AKILF information

Renesas 8402015AKILF technical specifications, attributes, parameters and parts with similar specifications to Renesas 8402015AKILF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Number of Pins
32

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Generators

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Pin Count
32

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.465V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Supply Current-Max
36mA

Frequency (Max)
125MHz

Input
Crystal

Primary Clock/Crystal Frequency-Nom
25MHz

Length
5mm

Width
5mm

Thickness
900?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 8402015AKILF.

Datasheets:

integrateddevicetechnology-8402015akilf-datasheets-6477.pdf

8402015AKILF Overview

This clock generator ic can sustain a maximum temperature of 260 during reflowing. It contains 32 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3.3V. The input of this clock generator is designed to be Crystal. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 125MHz Max with this clock-based frequency generator. This clock generator would require a maximum supply voltage of 3.465V. This time clock generator integrates CLOCK GENERATOR, OTHER uPs, uCs, and peripheral ICs. The clock-generating IC is a 32-bit device designed specifically for microprocessors. It is possible to connect to the frequency generators via 32 pins. Despite its low-temperature operation, this clock generator ic is capable of -40°C operations. Despite its attenuated performance, this frequency synthesizer can last at 85°C. There is a maximum supply voltage of 3.3V that clock generator can handle. This clock generator can be classified as a kind of Clock Generators in general. It is possible for an element to be thermally destroyed if clock PLL?s supply current (greater than 36mA) is excessive.

8402015AKILF Features

Supply voltage of 3.3V
Operating supply voltage of 3.3V

8402015AKILF Applications

There are a lot of Integrated Device Technology (IDT)
8402015AKILF Clock Generators applications.

Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
