Renesas 840021AGLF
Renesas 840021AGLF

Renesas 840021AGLF

Manufacturer No:

840021AGLF

Manufacturer:

Renesas

Package:

TSSOP

Description:

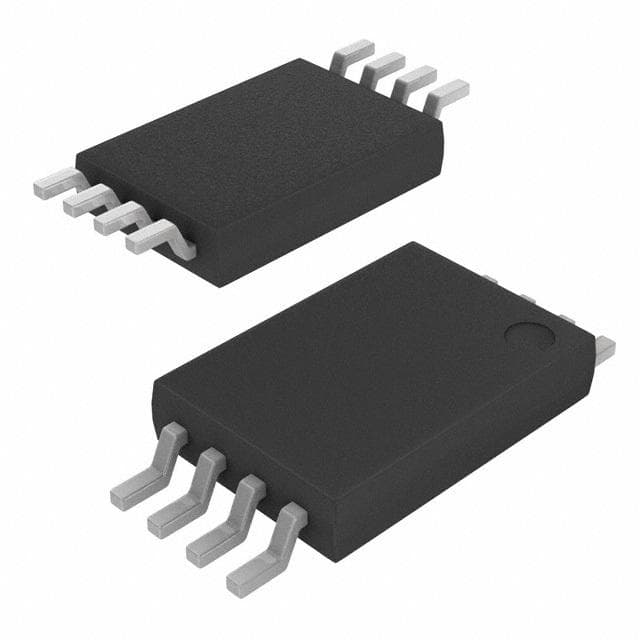

3.3V 125MHz Clock Generators 8 Pins TSSOP 8 Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

840021AGLF information

Renesas 840021AGLF technical specifications, attributes, parameters and parts with similar specifications to Renesas 840021AGLF.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Package / Case
  • TSSOP
  • Number of Pins
  • 8
  • Published
  • 2007
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Subcategory
  • Clock Generators
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Frequency
  • 25MHz
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 8
  • Operating Supply Voltage
  • 3.3V
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 3.465V
  • Min Supply Voltage
  • 3.135V
  • Nominal Supply Current
  • 75mA
  • uPs/uCs/Peripheral ICs Type
  • CLOCK GENERATOR, OTHER
  • Frequency (Max)
  • 125MHz
  • Input
  • Crystal
  • Primary Clock/Crystal Frequency-Nom
  • 25MHz
  • PLL
  • Yes
  • Length
  • 4.4mm
  • Width
  • 3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 840021AGLF.

Datasheets:

840021AGLF Overview


Clock PLL is embedded in the TSSOP package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 8 terminations can be found in frequency generators. The supply voltage of 3.3V allows for high efficiency. Crystal is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 125MHz is the maximal value for normal operation. The uPs/uCs/Peripheral IC clock generator incoporates is CLOCK GENERATOR, OTHER. Clock PLL is equipped with 8 pin count. Clock generator is designed with 8 pins. The operating temperature should be higher than 0°C. The operating temperature should be lower than 70°C. The supply voltage should be maintained at 3.3V for high efficiency. Clock generator can also be included into Clock Generators. Clock generator operates with the maximal supply voltage of 3.465V. Clock PLL operates with the minimal supply voltage of 3.135V. It is able to realize high efficiency when operating at a frequency of 25MHz.

840021AGLF Features


Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V


840021AGLF Applications


There are a lot of Integrated Device Technology (IDT)
840021AGLF Clock Generators applications.


  • Wireless infrastructure
  • Instrument
  • Automatic test equipment
  • Wide area power system
  • Digital circuits
  • Wireless base station for LTE, LTE-advanced
  • Picocells, femtocells and small cells
  • Sampling clocks for ADC and DAC
  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
