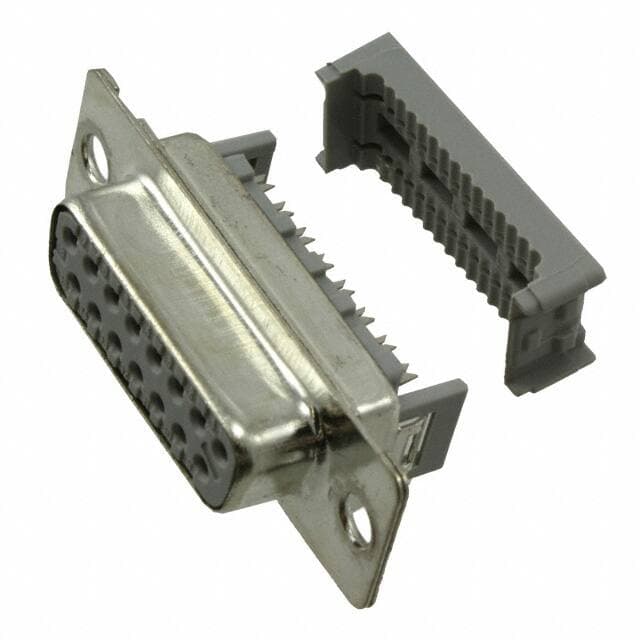

3M 8315-6009
3M 8315-6009

3M 8315-6009

Manufacturer No:

8315-6009

Manufacturer:

3M

Package:

Metal

Description:

8300 Series D-Sub Receptacle, Female Sockets 15-Position Receptacle Signal IDC, Ribbon Cable 2 DA A Panel Mount Copper Alloy Gold Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8315-6009 information

3M 8315-6009 technical specifications, attributes, parameters and parts with similar specifications to 3M 8315-6009.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Cable, Panel
  • Mounting Type
  • Panel Mount
  • Package / Case
  • Metal
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Housing Material
  • Polybutylene
  • Body Material
  • Steel
  • Shell Material, Finish
  • Steel, Tin Plated
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • 8300
  • Published
  • 2001
  • Feature
  • Feed Through
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 15
  • Termination
  • IDC, Ribbon Cable
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 15
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Gray
  • Gender
  • Receptacle
  • Contact Type
  • Signal
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2.74mm
  • Orientation
  • Right Angle
  • Depth
  • 12.4mm
  • Current Rating
  • 1A
  • Contact Finish
  • Gold
  • Number of Contacts
  • 15
  • Wire Gauge
  • 26-28 AWG
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Connector Style
  • D-Sub
  • Number of Ports
  • 1
  • Shell Size, Connector Layout
  • 2 DA A
  • Length
  • 39.1mm
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Material Flammability Rating
  • UL94 V-0
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for 3M 8315-6009.

Datasheets:

ConflictMineralStatement:

8315-6009 Overview


This product is packaged in a Receptacle, Female Sockets box.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number 8300 belongs to the 8300 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.Packaging with Metal contains a device.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Feed Through feature.There is a Cable, Panel mount on the part.The chip terminates at 15.This device operates at a temperature of -55°C~105°C.

8315-6009 Features


15 basic kinds of terminations
8300 series


8315-6009 Applications


There are a lot of 3M
8315-6009 D-Sub Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations

User Guide
