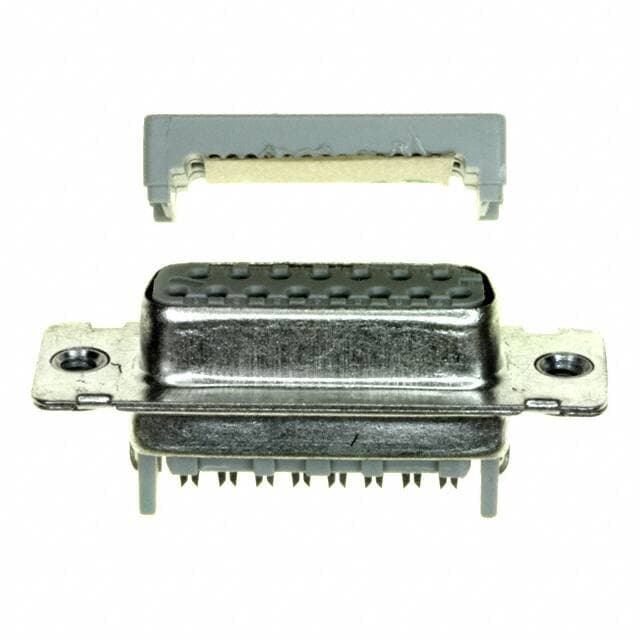

3M 8315-6003
3M 8315-6003

3M 8315-6003

Manufacturer No:

8315-6003

Manufacturer:

3M

Package:

Metal

Description:

8300 Series D-Sub Receptacle, Female Sockets 15-Position Receptacle Signal IDC, Ribbon Cable 2 DA A Panel Mount Copper Alloy Gold Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8315-6003 information

3M 8315-6003 technical specifications, attributes, parameters and parts with similar specifications to 3M 8315-6003.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Cable, Panel
  • Mounting Type
  • Panel Mount
  • Package / Case
  • Metal
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Housing Material
  • Polybutylene
  • Body Material
  • Metal, Steel
  • Shell Material, Finish
  • Steel, Tin Plated
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • 8300
  • Published
  • 2006
  • Feature
  • Feed Through
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 15
  • Termination
  • IDC, Ribbon Cable
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 15
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Gray
  • Gender
  • Receptacle
  • Contact Type
  • Signal
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2.76mm
  • Orientation
  • Right Angle
  • Depth
  • 12.4mm
  • Current Rating
  • 1A
  • Contact Finish
  • Gold
  • Approval Agency
  • UL
  • Number of Contacts
  • 15
  • Housing Color
  • Grey
  • Lead Length
  • 3m
  • Wire Gauge
  • 26-28 AWG
  • Flange Feature
  • Housing/Shell (4-40)
  • Connector Style
  • D-Sub
  • Number of Ports
  • 1
  • Cable Length
  • 3m
  • Shell Size, Connector Layout
  • 2 DA A
  • Sensing Distance
  • 3 m
  • Length
  • 39.2mm
  • Width
  • 16.5mm
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M 8315-6003.

Datasheets:

ConflictMineralStatement:

8315-6003 Overview


The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Tray case is used.It belongs to the 8300 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -55°C.In the packaging with the Metal, there is a device enclosed in the package.It features 1 ports for managing a variety of tasks.Its Feed Through feature renders it more powerful in many ways.The part is mounted by Cable, Panel.The chip has 15 terminations.The device runs in -55°C~105°C Operating Temperature.

8315-6003 Features


15 basic kinds of terminations
8300 series


8315-6003 Applications


There are a lot of 3M
8315-6003 D-Sub Connectors applications.
