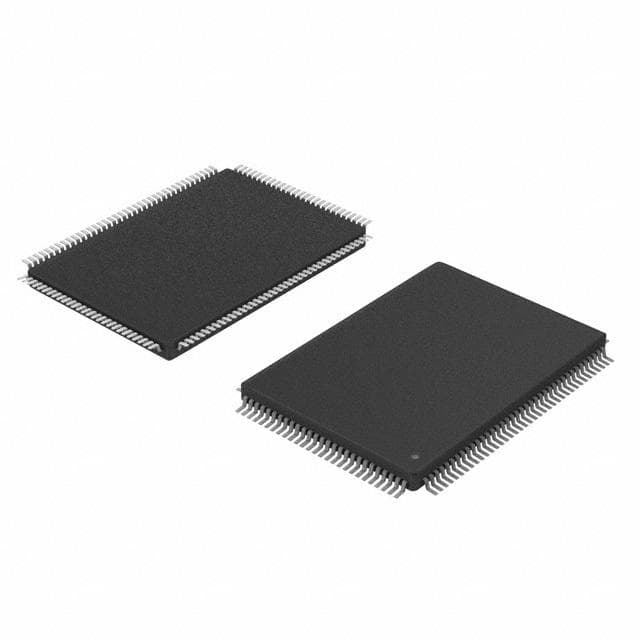

Renesas 82V2084PF8

Manufacturer No:

82V2084PF8

Manufacturer:

Renesas

Package:

TQFP

Description:

128 Terminations 128 Pin Telecom device 1 Functions Min 3.13V V Max 3.47V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82V2084PF8 information

Renesas 82V2084PF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 82V2084PF8.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
128

Published
2004

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Digital Transmission Interfaces

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
128

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.47V

Min Supply Voltage
3.13V

Supply Current-Max
0.38mA

Data Rate
2.048 Mbps

Telecom IC Type
PCM TRANSCEIVER

Number of Transceivers
4

Length
20mm

Height Seated (Max)
1.6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82V2084PF8.

Datasheets:

integrateddevicetechnology-82v2084pf8-datasheets-8091.pdf

82V2084PF8 Overview

In order to save space on the board, TQFP packages are used.Mounted in the direction of Surface Mount.Configuration of the telecom circuit shows 128 terminations.A 3.3V supply voltage is required to operate it.A 128 pin is included in this telecom interface.It uses the PCM TRANSCEIVER IC type for its telecom IC.Digital Transmission Interfaces includes telecommunications device as a subcategory.For normal operation, the temperature is set at -40°C minimum.Ensure normal operation by setting the temperature to the maximum value of 85°C.When designing, telecommunications device utili1es 1 functions.You should supply at least 3.13V volts.If 3.47V is higher than the supplied voltage, telecommunications device should be lower.It is designed with 128 telecom product pins.Integrates 4 transceivers.Supply currents can reach 0.38mA maximum.

82V2084PF8 Features

Available in the TQFP package
PCM TRANSCEIVER as telecom IC type
4 transceivers

82V2084PF8 Applications

There are a lot of Integrated Device Technology (IDT)
82V2084PF8 Telecom applications.

T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
ISDN Primary Rate Interfaces (PRA)
PBXs channel bank
PCM channel bank
