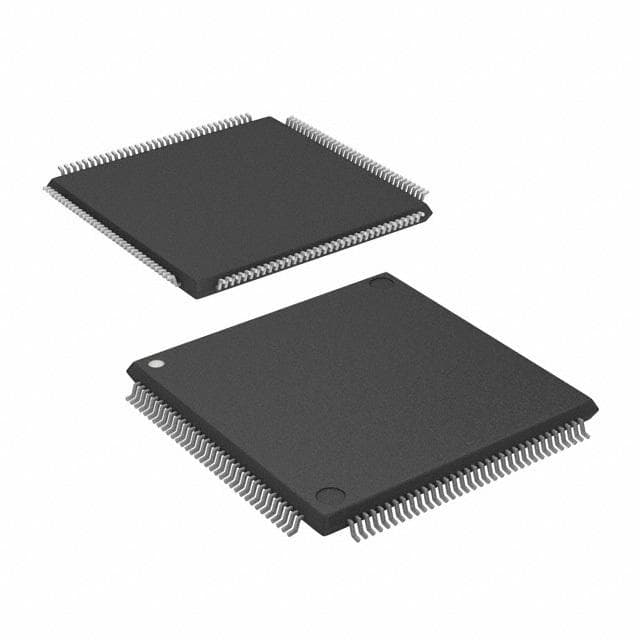

Renesas 82V2048SDA

Manufacturer No:

82V2048SDA

Manufacturer:

Renesas

Package:

TQFP

Description:

144 Terminations 3.3V 144 Pin Telecom device 1 Functions Min 3.13V V Max 3.47V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82V2048SDA information

Renesas 82V2048SDA technical specifications, attributes, parameters and parts with similar specifications to Renesas 82V2048SDA.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
144

Published
2012

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
144

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Digital Transmission Interfaces

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
144

Operating Supply Voltage
3.3V

Power Supplies
3.33.3/5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.47V

Operating Supply Current
55mA

Max Supply Current
65mA

Data Rate
2.048 Mbps

Telecom IC Type
PCM TRANSCEIVER

Number of Transceivers
8

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82V2048SDA.

Datasheets:

integrateddevicetechnology-82v2048sda-datasheets-1423.pdf

82V2048SDA Overview

Board space can be saved by using the TQFP package.Mounted in Surface Mount-direction.In telecom switching configuration, there are 144 terminations.The voltage it operates at is 3.3V.144 pins are present on this telecom interface.Telecom ICs of type PCM TRANSCEIVER are used in it.The supply voltage is 3.3V, which provides designers with a lot of flexibility.Telecom product operates with 55mA's supply current to give designers a lot of flexibility.Digital Transmission Interfaces subcategories telecommunications device .Normal operation is ensured by setting -40°C to a minimum value.To ensure normal operation, 85°C is set at maximum.A 1 function is configured when designing.A voltage of at least 3.13V should be supplied.There should be a lower voltage supplied than 3.47V.There is a pin configuration for 144 telecom products.It is recommended to keep the supply current at 65mA for normal operation.The telecommunication product incorporates 8 transceivers.

82V2048SDA Features

Available in the TQFP package
PCM TRANSCEIVER as telecom IC type
Operating supply voltage of 3.3V
Operating supply current of 55mA
8 transceivers

82V2048SDA Applications

There are a lot of Integrated Device Technology (IDT)
82V2048SDA Telecom applications.

Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)

User Guide
