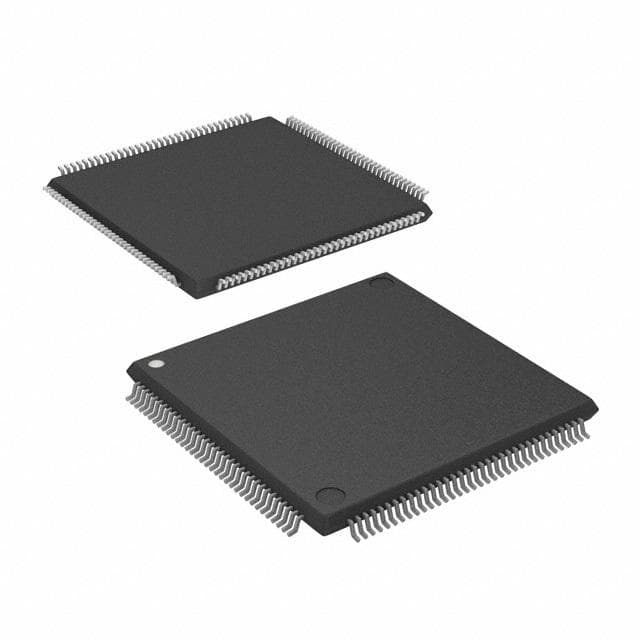

Renesas 82V2048DA
Renesas 82V2048DA

Renesas 82V2048DA

Manufacturer No:

82V2048DA

Manufacturer:

Renesas

Package:

LQFP

Description:

144 Terminations 3.3V 144 Pin Telecom device 1 Functions Min 3.13V V Max 3.47V V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82V2048DA information

Renesas 82V2048DA technical specifications, attributes, parameters and parts with similar specifications to Renesas 82V2048DA.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • LQFP
  • Number of Pins
  • 144
  • Published
  • 2010
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 144
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Digital Transmission Interfaces
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 225
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 144
  • Qualification Status
  • Not Qualified
  • Operating Supply Voltage
  • 3.3V
  • Power Supplies
  • 3.33.3/5V
  • Temperature Grade
  • INDUSTRIAL
  • Min Supply Voltage
  • 3.13V
  • Operating Supply Current
  • 55mA
  • Max Supply Current
  • 65mA
  • Data Rate
  • 2.048 Mbps
  • Telecom IC Type
  • PCM TRANSCEIVER
  • Number of Transceivers
  • 8
  • Length
  • 20mm
  • Height Seated (Max)
  • 1.6mm
  • Width
  • 20mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82V2048DA.

Datasheets:

82V2048DA Overview


Space is saved on the board by using the LQFP package.In Surface Mount's direction, telecom switching is mounted.The configuration includes 144 terminations.With 3.3V as the supply voltage, it operates.144 pins are located on this telecom interface.It uses a PCM TRANSCEIVER type telecom IC.For designers, it offers a wide range of flexibility as it operates with the supply voltage of 3.3V.It operates using the supply current of 55mA, which gives designers a lot of flexibility.This is a Digital Transmission Interfaces subcategory.During normal operation, a minimum value of -40°C is set for the temperature.In order to ensure normal operation of the telecom circuit, the temperature is set at the maximum value of 85°C.1 functions are used when designing telecommunications device .3.13V is the minimum voltage that should be supplied.A lower voltage should be supplied than 3.47V.There is a specific configuration for the pins on the 144 telecom product.Normally, the supply current should remain at 65mA.The 8 transceiver is integrated into the telecommunication product.

82V2048DA Features


Available in the LQFP package
PCM TRANSCEIVER as telecom IC type
Operating supply voltage of 3.3V
Operating supply current of 55mA
8 transceivers


82V2048DA Applications


There are a lot of Integrated Device Technology (IDT)
82V2048DA Telecom applications.


  • Channel Service Units (CSUs): T1/E1/J1
  • Fractional T1/E1/J1
  • BITS Timing
  • Digital Access Cross-connect System (DACs)
  • Digital Cross-connect Systems (DCS)
  • Frame Relay Switches and Access Devices (FRADS)
  • ISDN Primary Rate Interfaces (PRA)
  • PBXs channel bank
  • PCM channel bank
  • T3 channelized access concentrators
