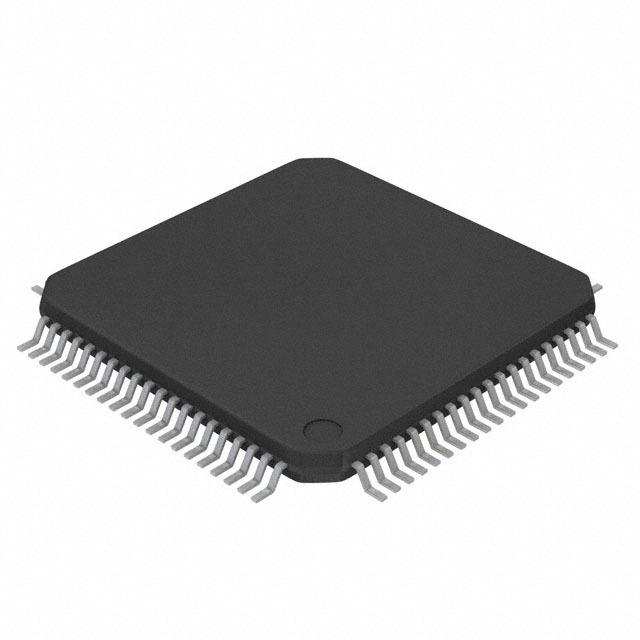

Renesas 82V2042EPF8

Manufacturer No:

82V2042EPF8

Manufacturer:

Renesas

Package:

TQFP

Description:

80 Terminations 80 Pin Telecom device 1 Functions Min 3.13V V Max 3.47V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82V2042EPF8 information

Renesas 82V2042EPF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 82V2042EPF8.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
80

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Digital Transmission Interfaces

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
80

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.47V

Min Supply Voltage
3.13V

Supply Current-Max
0.18mA

Telecom IC Type
PCM TRANSCEIVER

Number of Transceivers
2

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82V2042EPF8.

Datasheets:

integrateddevicetechnology-82v2042epf8-datasheets-5273.pdf

82V2042EPF8 Overview

Board space can be saved by using the TQFP package.Mounted in Surface Mount-direction.In telecom switching configuration, there are 80 terminations.The voltage it operates at is 3.3V.80 pins are present on this telecom interface.Telecom ICs of type PCM TRANSCEIVER are used in it.Digital Transmission Interfaces subcategories telecommunications device .Normal operation is ensured by setting -40°C to a minimum value.To ensure normal operation, 85°C is set at maximum.A 1 function is configured when designing.A voltage of at least 3.13V should be supplied.There should be a lower voltage supplied than 3.47V.There is a pin configuration for 80 telecom products.The telecommunication product incorporates 2 transceivers.Telecommunications equipment reaches 0.18mA when the maximum supply current is allowed.

82V2042EPF8 Features

Available in the TQFP package
PCM TRANSCEIVER as telecom IC type
2 transceivers

82V2042EPF8 Applications

There are a lot of Integrated Device Technology (IDT)
82V2042EPF8 Telecom applications.

Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Frame Relay Switches and Access Devices (FRADS)
