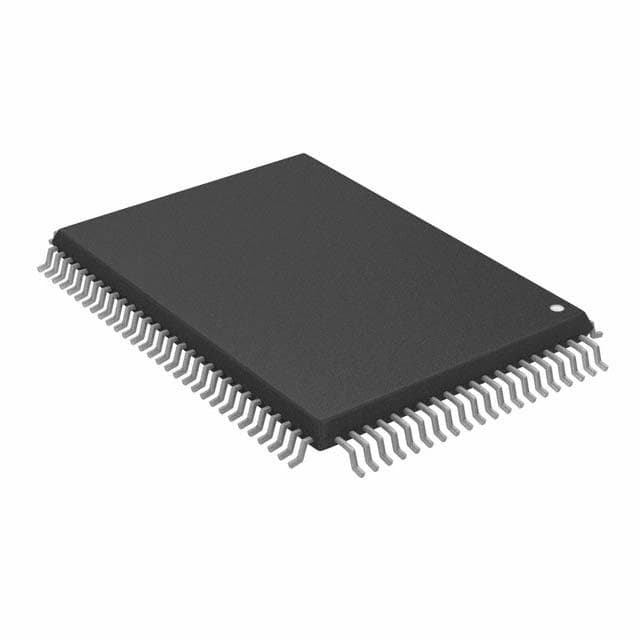

Renesas 82P2282PFG8
Renesas 82P2282PFG8

Renesas 82P2282PFG8

Manufacturer No:

82P2282PFG8

Manufacturer:

Renesas

Package:

TQFP

Description:

100 Terminations 3.3V 100 Pin Telecom device 1 Functions Min 3V V Max 3.6V V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82P2282PFG8 information

Renesas 82P2282PFG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 82P2282PFG8.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Package / Case
  • TQFP
  • Number of Pins
  • 100
  • Published
  • 2009
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 100
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Other Telecom ICs
  • Technology
  • BIPOLAR
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 100
  • Operating Supply Voltage
  • 3.3V
  • Interface
  • Parallel, SPI, Serial
  • Max Supply Voltage
  • 3.6V
  • Min Supply Voltage
  • 3V
  • Nominal Supply Current
  • 20mA
  • Logic Function
  • Transceiver
  • Data Rate
  • 2.048 Mbps
  • Number of Transceivers
  • 2
  • Carrier Type
  • T-1(DS1)
  • Height Seated (Max)
  • 1.6mm
  • Width
  • 14mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82P2282PFG8.

Datasheets:

82P2282PFG8 Overview


To save board space, the TQFP package is used.Surface Mount is the way telecom switching is mounted.Telecom switching configuration has 100 terminations.It operates with a voltage of 3.3V.Telecom interfaces contain 100 pins.In order to provide designers with a great deal of flexibility, this telecom circuit operates on the supply voltage of 3.3V.In the Other Telecom ICs subcategory, telecommunications device belongs.A minimum temperature value -40°C is set to ensure normal operation.In order to maintain normal operation, 85°C must be set at its maximum value.During design, 1 functions are configured.Ideally, the voltage should be at least 3V.If the voltage supplied is lower than 3.6V, telecommunications device should be used.100 telecom products have pins designed specifically for their configuration.A 2 transceiver is incorporated into telecommunication tools.

82P2282PFG8 Features


Available in the TQFP package
Operating supply voltage of 3.3V
2 transceivers


82P2282PFG8 Applications


There are a lot of Integrated Device Technology (IDT)
82P2282PFG8 Telecom applications.


  • Add/Drop multiplexers (ADMs)
  • T1/E1/J1 add/drop multiplexers (MUX)
  • Channel Service Units (CSUs): T1/E1/J1
  • Fractional T1/E1/J1
  • BITS Timing
  • Digital Access Cross-connect System (DACs)
  • Digital Cross-connect Systems (DCS)
  • Frame Relay Switches and Access Devices (FRADS)
  • ISDN Primary Rate Interfaces (PRA)
  • PBXs channel bank

User Guide
