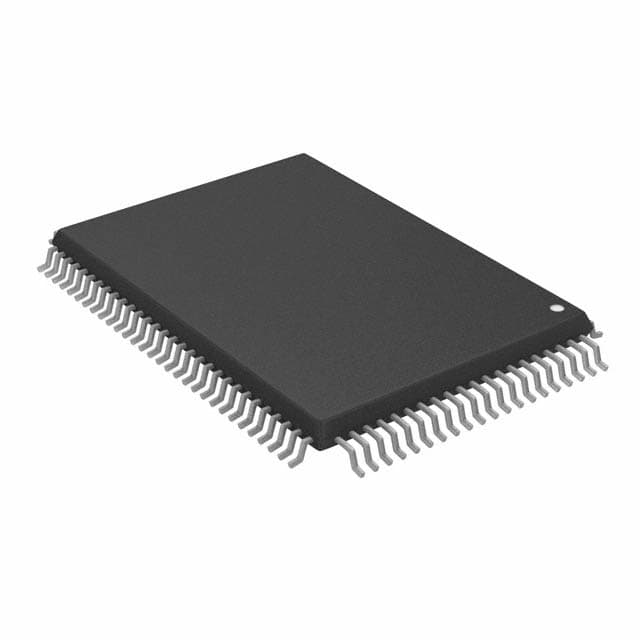

Renesas 82P2282PF8

Manufacturer No:

82P2282PF8

Manufacturer:

Renesas

Package:

LQFP

Description:

100 Terminations 100 Pin Telecom device 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82P2282PF8 information

Renesas 82P2282PF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 82P2282PF8.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
100

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Telecom ICs

Technology
BIPOLAR

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
100

Temperature Grade
INDUSTRIAL

Interface
SPI

Logic Function
Transceiver

Data Rate
2.048 Mbps

Number of Transceivers
2

Carrier Type
T-1(DS1)

Height Seated (Max)
1.6mm

Width
14mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82P2282PF8.

Datasheets:

integrateddevicetechnology-82p2282pf8-datasheets-7068.pdf

82P2282PF8 Overview

In order to save space on the board, the LQFP package is used.Telecommunications equipment is packed using the Tape & Reel (TR) method.Telecom switching is mounted in a Surface Mount-direction.Telecom switching configuration contains 100 terminations.It operates at a voltage of 3.3V.There are 100 pins on this telecom interface.Other Telecom ICs is a subcategory of telecommunications device .In order to ensure normal operation, the temperature is set to the minimum value of -40°C.A maximum value of 85°C is set to ensure normal operation.When designing, it is configured with 1 functions.Pins on the 100 telecom product are designed for its configuration.2 transceivers are incorporated into telecommunication tools.

82P2282PF8 Features

Available in the LQFP package
2 transceivers

82P2282PF8 Applications

There are a lot of Integrated Device Technology (IDT)
82P2282PF8 Telecom applications.

Switches
LAN Routers
Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
