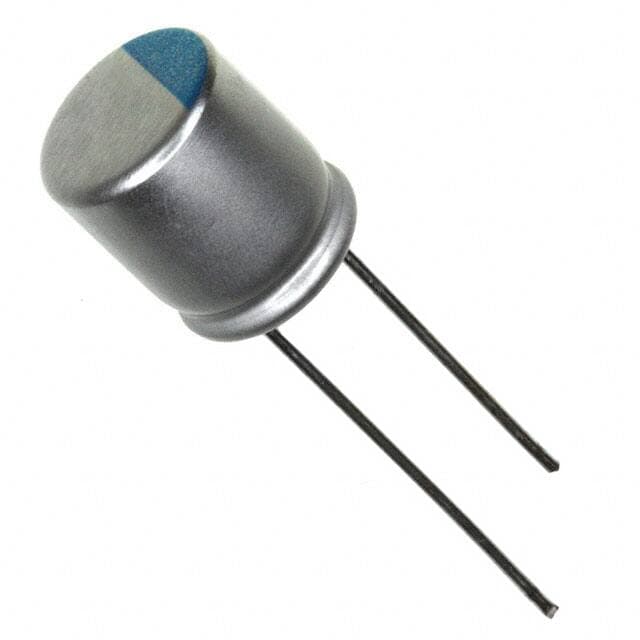

Illinois Capacitor 826AVG050MFBJ
Illinois Capacitor 826AVG050MFBJ

Illinois Capacitor 826AVG050MFBJ

Manufacturer No:

826AVG050MFBJ

Manufacturer:

Illinois Capacitor

Package:

Radial, Can

Description:

82?F ±20% Radial, Can 0.532 13.50mm Bulk 32mOhm AVG Through Hole Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

826AVG050MFBJ information

Illinois Capacitor 826AVG050MFBJ technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 826AVG050MFBJ.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • AVG
  • Published
  • 2016
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Type
  • Polymer
  • Applications
  • General Purpose
  • Voltage - Rated
  • 50V
  • Capacitance
  • 82?F
  • Lead Pitch
  • 3.5052mm
  • ESR (Equivalent Series Resistance)
  • 32mOhm
  • Polarity
  • Polar
  • Lead Spacing
  • 0.138 3.50mm
  • Lifetime @ Temp
  • 2000 Hrs @ 125°C
  • Ripple Current
  • 2.25A
  • Ripple Current @ Low Frequency
  • 112.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 2.25A @ 100kHz
  • Height Seated (Max)
  • 0.532 13.50mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Illinois Capacitor 826AVG050MFBJ.

Datasheets:

Environmental Information:

826AVG050MFBJ Overview


It is necessary to have a ripple current at high frequency of 2.25A @ 100kHz to power systems.The device has an ESR of 32mOhm.112.5mA @ 120Hz needs a ripple current @ Low Frequency to function properly.A stable operating temperature is -55°C~125°C.

826AVG050MFBJ Features


2.25A @ 100kHz ripple current on a high frequency
a 32mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~125°C


826AVG050MFBJ Applications


There are a lot of Illinois Capacitor
826AVG050MFBJ applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
