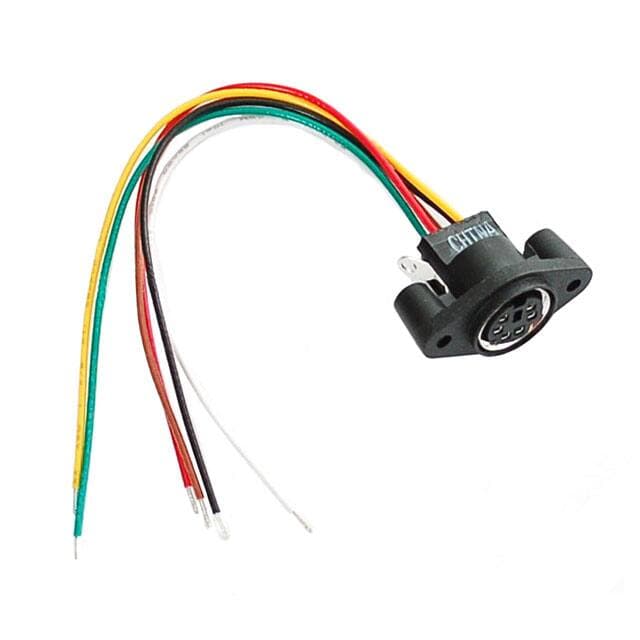

Adafruit Industries LLC 804
Manufacturer No:
804
Manufacturer:
Package:
Description:
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Panel Mount 6 Positions Wire Leads Tin Bulk Keyed Push-Pull
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
804 information
Adafruit Industries LLC 804 technical specifications, attributes, parameters and parts with similar specifications to Adafruit Industries LLC 804.
- Type
- Parameter
- Factory Lead Time
- 2 Weeks
- Contact Material
- Phosphor Bronze
- Contact Plating
- Tin
- Mount
- Flanges, Panel
- Mounting Type
- Panel Mount
- Mounting Feature
- Flange
- Shell Material
- Polybutylene Terephthalate (PBT)
- Insert Material
- Polybutylene Terephthalate (PBT)
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Feature
- Ground
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Wire Leads
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 6
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Color
- Black
- Voltage - Rated
- 100VAC 12VDC
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- Tin
- Current Rating (Amps)
- 1A 2A
- Orientation
- Keyed
- Current Rating
- 2A
- Shell Size - Insert
- Mini DIN
Download datasheets and manufacturer documentation for Adafruit Industries LLC 804.
Datasheets:
804 Overview
The product comes in a package of Receptacle, Female Sockets.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.Use it when the temperature is below 85°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Ground feature.It is mounted by Flanges, Panel.It operates at an operating temperature of -40°C~85°C.
804 Features
804 Applications
There are a lot of Adafruit Industries LLC
804 Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
