Preci-Dip 800-10-023-30-001101
Preci-Dip 800-10-023-30-001101

Preci-Dip 800-10-023-30-001101

Manufacturer No:

800-10-023-30-001101

Manufacturer:

Preci-Dip

Package:

Description:

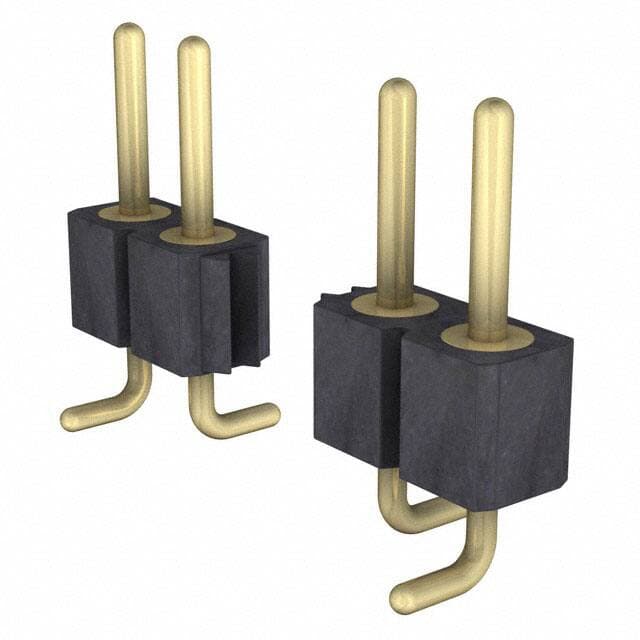

800 Series 1-Row Header Solder Brass Bulk Surface Mount Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 23-Position Board to Board 0.116 2.95mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

800-10-023-30-001101 information

Preci-Dip 800-10-023-30-001101 technical specifications, attributes, parameters and parts with similar specifications to Preci-Dip 800-10-023-30-001101.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Brass
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Contact Shape
  • Circular
  • Insulation Material
  • Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Bulk
  • Series
  • 800
  • Published
  • 2012
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 23
  • Number of Rows
  • 1
  • Voltage - Rated
  • 150VDC
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 3A
  • Total Number of Contacts
  • 23
  • Terminal Pitch
  • 5.08mm
  • Insulation Height
  • 0.116 2.95mm
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 2.3 inch
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 2
  • Contact Length - Mating
  • 0.191 4.85mm
  • PCB Contact Pattern
  • STAGGERED
  • Durability
  • 500 Cycles
  • Contact Finish Thickness - Mating
  • 10.0?in 0.25?m
  • Contact Finish Thickness - Post
  • 10.0?in 0.25?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Preci-Dip 800-10-023-30-001101.

Datasheets:

Environmental Information:

800-10-023-30-001101 Overview


The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number 800 belongs to the 800 Series.There is a Surface Mount mount on the part.This device operates at a temperature of -55°C~125°C.

800-10-023-30-001101 Features


800 series


800-10-023-30-001101 Applications


There are a lot of Preci-Dip
800-10-023-30-001101 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
