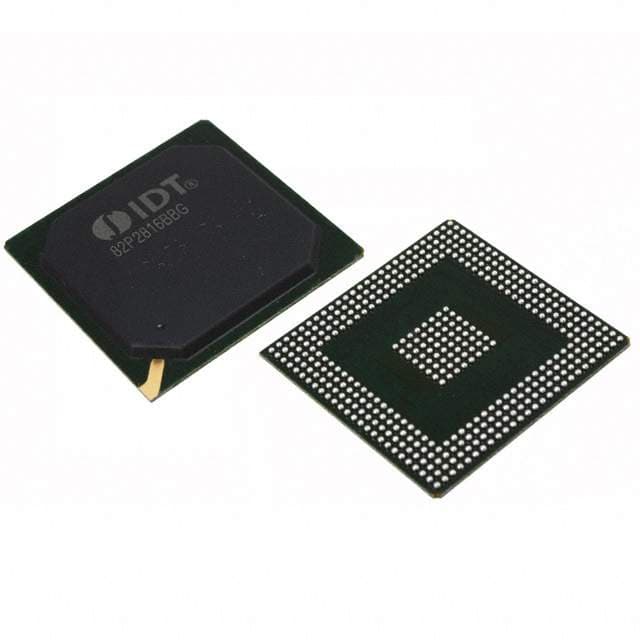

Renesas 79RC32K438-233BBGI

Manufacturer No:

79RC32K438-233BBGI

Manufacturer:

Renesas

Package:

BGA

Description:

32-bit Microprocessor 416-Pin 233MHz 1.2V BGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

79RC32K438-233BBGI information

Renesas 79RC32K438-233BBGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 79RC32K438-233BBGI.

Type
Parameter

Mount
Surface Mount

Package / Case
BGA

Number of Pins
416

Published
1999

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
416

Terminal Finish
TIN SILVER COPPER

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Frequency
233MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
416

Operating Supply Voltage
1.2V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
1.3V

Min Supply Voltage
1.1V

Bit Size
32

Frequency (Max)
233MHz

Data Bus Width
32b

Boundary Scan
YES

Low Power Mode
NO

Format
FIXED POINT

Integrated Cache
YES

Number of Cores
1

Length
27mm

Height Seated (Max)
2.44mm

Width
27mm

Thickness
2.23mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 79RC32K438-233BBGI.

Datasheets:

integrateddevicetechnology-79rc32k438233bbgi-datasheets-4639.pdf

79RC32K438-233BBGI Overview

Shipping overseas is convenient thanks to the embedded microprocessor's packaging in BGA. A MICROPROCESSOR, RISC represents the uPs/uCs/Peripheral ICs type. In total, 416 terminations have been made. Using a 1.2V voltage supply, the microprocessor should turn on and run. It is an architecture with 32 bits. CPUs operate with a frequency of 233MHz Hz. You can refer to the datasheets for the functions of 416 pins. It is important to note that there is 32b bandwidth available for data transfer. It is recommended that the CPU microprocessor is not operated in an environment with a temperature of more than 85°C. An injection of 416 pins is performed inside the body of the micro processor. 1 cores are present in this processor. This CPU is widely used in many applications because of its Surface Mount mount. A CPU operating at 233MHz frequency is expected. From 1.2V on, the CPU microprocessor will function. normally, the microprocessor should not receive a voltage higher than 1.3V. The lowest voltage that should be applied to the micro processor is 1.1V.

79RC32K438-233BBGI Features

32-Bit Structure
32b-Bit Data Bus Width
1-Core CPU

79RC32K438-233BBGI Applications

There are a lot of Integrated Device Technology (IDT)
79RC32K438-233BBGI Microprocessor applications.

Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
