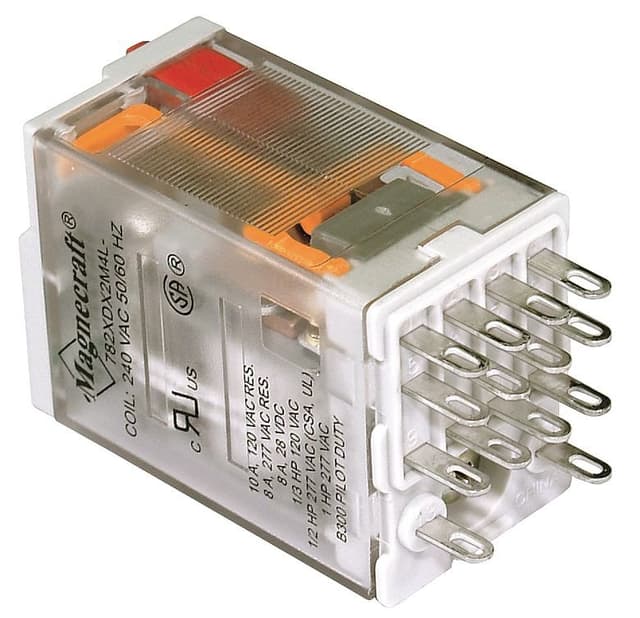

Magnecraft 782XDX2M4L-24A

Manufacturer No:

782XDX2M4L-24A

Manufacturer:

Magnecraft

Package:

120

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

782XDX2M4L-24A information

Magnecraft 782XDX2M4L-24A technical specifications, attributes, parameters and parts with similar specifications to Magnecraft 782XDX2M4L-24A.

Type
Parameter

Package / Case
120

Contact Material
Silver

Mount
Plug-In, Socket

Number of Pins
14

Voltage Rating (AC)
300 V

Termination
Solder

Max Operating Temperature
55 °C

Min Operating Temperature
-40 °C

Power Rating
1.2 W

Depth
27.9 mm

Current Rating
10 A

Approval Agency
CE, CSA, UL

Max Voltage Rating (AC)
120 V

Max Current Rating
10 A

Throw Configuration
4PDT

Contact Current Rating
10 A

Relay Type
General Purpose

Coil Resistance
180 ?

Operate Time
20 ms

Switching Voltage
300 V

Power Consumption
2.3 W

Coil Power
1.2 W

Coil Voltage (AC)
24 V

Height
46.1 mm

Width
21 mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Magnecraft 782XDX2M4L-24A.

Datasheets:

magnecraft-782xdx2m4l24a-datasheets-5310.pdf

magnecraft-782xdx2m4l24a-datasheets-5313.pdf

magnecraft-782xdx2m4l24a-datasheets-5314.pdf

magnecraft-782xdx2m4l24a-datasheets-5315.pdf

Description: The Magnecraft 782XDX2M4L-24A is a general purpose power relay designed for use in a variety of applications. It is an Ice Cube 4PDT (4 Pole Double Throw) relay with a 24 VAC voltage rating, 10A current rating, and a full cover. This relay is part of the 782 Power Series from Magnecraft.

Features:
- 4PDT (4 Pole Double Throw) relay
- 24 VAC voltage rating
- 10A current rating
- Full cover
- Part of the 782 Power Series from Magnecraft

Applications: The Magnecraft 782XDX2M4L-24A is suitable for a variety of applications, including motor control, HVAC systems, lighting control, and industrial automation. It is also suitable for use in applications where a high current rating is required, such as in power supplies and power distribution systems.
