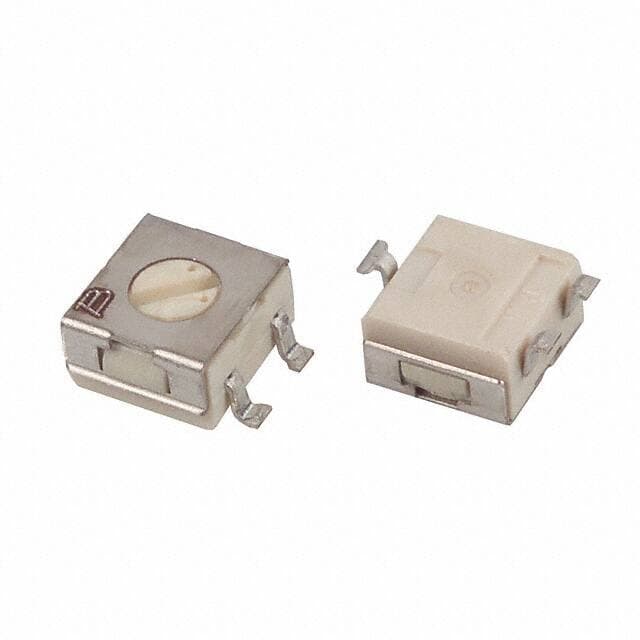

BOURNS 7814G-1-023E

Manufacturer No:

7814G-1-023E

Manufacturer:

BOURNS

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7814G-1-023E information

BOURNS 7814G-1-023E technical specifications, attributes, parameters and parts with similar specifications to BOURNS 7814G-1-023E.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Weight
200mg

Actuator Material
LIQUID CRYSTAL POLYMER

Terminal Material
COPPER ALLOY

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
7814

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Gull Wing

ECCN Code
EAR99

Number of Positions
2

Terminal Finish
Tin (Sn)

Voltage - Rated
16VAC/DC

Additional Feature
ROHS COMPLIANT, TAPE PKG

Voltage - Rated DC
16V

Packing Method
TAPE AND REEL

Orientation
Straight

Depth
6.2mm

Current Rating
100mA

Termination Style
Gull Wing

Body Breadth
4.5 mm

Actuator Type
Rotary for Tool

Circuit
SPDT

Contact Style
Non-Shorting

Contact Resistance
2Ohm

Max Voltage Rating (AC)
16V

Max Current Rating
100mA

Max Voltage Rating (DC)
16V

Mechanical Life
2,000 Cycles

Switch Type
ROTARY SWITCH

Illumination Type
Illuminated

Contact Timing
BREAK-BEFORE-MAKE

Number of Switch Sections
1

Number of Poles per Deck
1

Switch Action
LATCHED

Washable
No

Actuator Level
Flush, Recessed

Height
2.55mm

Length
0.177 4.50mm

Actuator Length
0m

Height Above Board
0.100 2.54mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for BOURNS 7814G-1-023E.

Datasheets:

bournsinc-7814g1051e-datasheets-0813.pdf

ConflictMineralStatement:

bourns-ptf01152b103b2-conflictmineralstatement-5082.pdf

The Bourns 7814G-1-023E is a single-pole double-throw (SPDT) rotary dip switch. It is designed to provide reliable switching performance in a variety of applications. It features a 100mA current rating and a 16V voltage rating. The switch is constructed with a durable plastic housing and a gold-plated contact system for reliable operation.

Features of the Bourns 7814G-1-023E include:
? SPDT rotary dip switch
? 100mA current rating
? 16V voltage rating
? Durable plastic housing
? Gold-plated contact system

The Bourns 7814G-1-023E is suitable for a variety of applications, including:
? Automotive
? Industrial
? Telecommunications
? Consumer electronics
? Medical devices
? Test and measurement equipment
