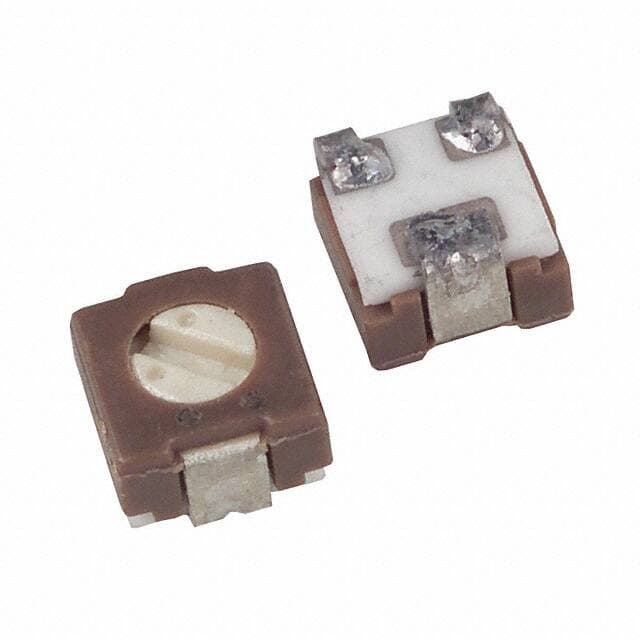

BOURNS 7813J-1-023E

Manufacturer No:

7813J-1-023E

Manufacturer:

BOURNS

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7813J-1-023E information

BOURNS 7813J-1-023E technical specifications, attributes, parameters and parts with similar specifications to BOURNS 7813J-1-023E.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
7813

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
J-Bend

Connector Type
INTERCONNECTION DEVICE

Number of Positions
2

Color
Grey

Voltage - Rated DC
16V

Orientation
Straight

Depth
3.5mm

Current Rating
100mA

Base Part Number
7813J

Termination Style
J Lead

Voltage - Rated AC
250V

Actuator Type
Rotary for Tool

Contact Style
Non-Shorting

Contact Resistance
2Ohm

Insulation Resistance
100MOhm

Max Voltage Rating (AC)
16V

Max Current Rating
100mA

Max Voltage Rating (DC)
16V

Mechanical Life
2,000 Cycles

Illumination Type
Illuminated, Non-Illuminated

Index Angle
245 °

Number of Poles per Deck
1

Washable
No

Actuator Level
Flush, Recessed

Height
3mm

Length
0.126 3.20mm

Width
3.5mm

Actuator Length
0m

Height Above Board
0.087 2.20mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for BOURNS 7813J-1-023E.

Datasheets:

bournsinc-7813j1051e-datasheets-3264.pdf

ConflictMineralStatement:

bourns-ptf01152b103b2-conflictmineralstatement-5082.pdf

The Bourns 7813J-1-023E is a single-pole double-throw (SPDT) rotary dip switch. It is designed to provide a reliable and cost-effective solution for a wide range of applications. This switch features a 100mA current rating and a 16V voltage rating. It is available in a variety of configurations, including a 3-position, 4-position, and 6-position switch.

Features of the Bourns 7813J-1-023E include a low profile design, a wide range of contact configurations, and a long life expectancy. The switch is also RoHS compliant and UL recognized.

Applications for the Bourns 7813J-1-023E include industrial control systems, automotive electronics, and consumer electronics. It is also suitable for use in a variety of other applications, such as medical equipment, security systems, and telecommunications.
