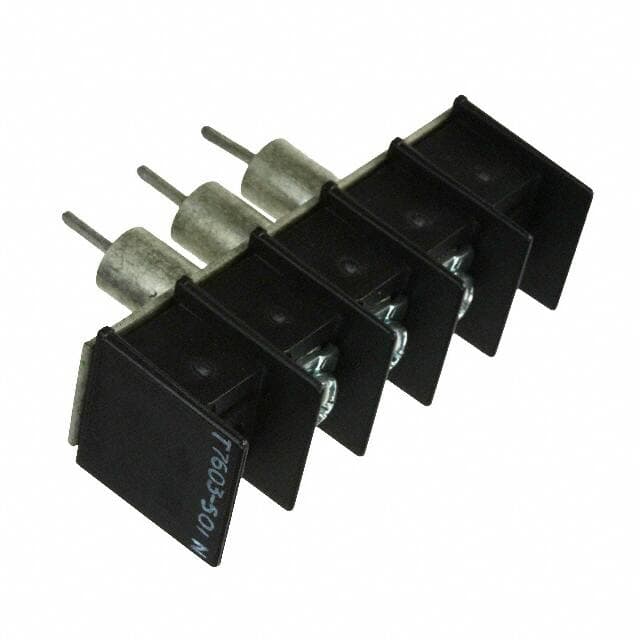

Tusonix a Subsidiary of CTS Electronic Components 7603-501NLF

Manufacturer No:

7603-501NLF

Manufacturer:

Tusonix a Subsidiary of CTS Electronic Components

Package:

Description:

Tray 1 Rows Chassis, Panel Barrier Block PC Pin 0.437 11.10mm 2 Wall (Dual) 3 Circuits Polybutylene Terephthalate (PBT)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7603-501NLF information

Tusonix a Subsidiary of CTS Electronic Components 7603-501NLF technical specifications, attributes, parameters and parts with similar specifications to Tusonix a Subsidiary of CTS Electronic Components 7603-501NLF.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Chassis, Panel

Mounting Type
Chassis, Panel

Housing Material
Thermoplastic

Material - Insulation
Polybutylene Terephthalate (PBT)

Operating Temperature
-40°C~125°C

Packaging
Tray

Published
2007

Feature
Filter 2000pF, Flange

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screw

ECCN Code
EAR99

Number of Rows
1

Voltage - Rated
250V

Additional Feature
PBT, 94V-0

Pitch
0.437 11.10mm

Current Rating
20A

Insulation Resistance
10GOhm

Number of Circuits
3

Wire Gauge (Max)
12 AWG

Number of Decks
1

Terminal Block Type
Barrier Block

Barrier Type
2 Wall (Dual)

Top Termination
Screws with Captive Plate

Number of Ways
3

Safety Approval
UL

Height
39.62mm

Length
57.15mm

Width
16.51mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for Tusonix a Subsidiary of CTS Electronic Components 7603-501NLF.

7603-501NLF Overview

It's mounted Chassis, Panel.We use a Tray case to package the product.There are also other features like PBT, 94V-0, to name a few.In many ways, its Filter 2000pF, Flange feature makes it more powerful.It's mounted by Chassis, Panel.Part 3 consists of circuits.-40°C~125°C Operating Temperature is what the device runs at.

7603-501NLF Features

7603-501NLF Applications

There are a lot of Tusonix a Subsidiary of CTS Electronic Components
7603-501NLF Terminal Blocks applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
