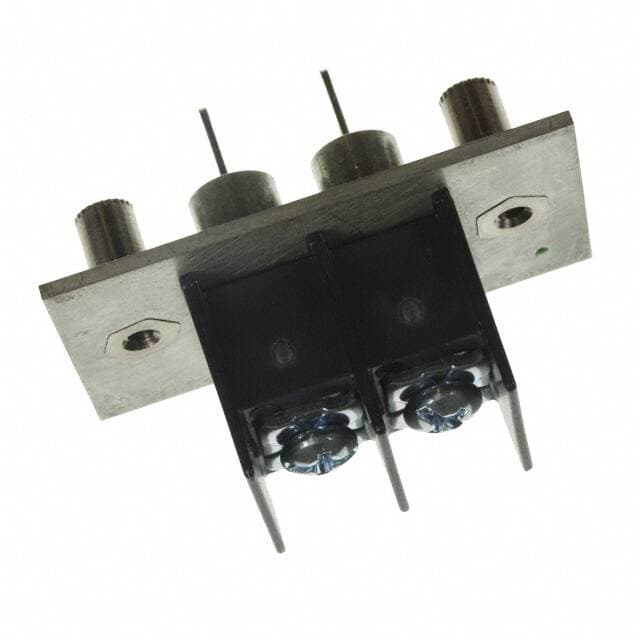

Tusonix a Subsidiary of CTS Electronic Components 7602-551NLF

Manufacturer No:

7602-551NLF

Manufacturer:

Tusonix a Subsidiary of CTS Electronic Components

Package:

Description:

Tray 1 Rows Chassis, Panel Barrier Block PC Pin 0.437 11.10mm 2 Wall (Dual) 2 Circuits Polybutylene Terephthalate (PBT)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7602-551NLF information

Tusonix a Subsidiary of CTS Electronic Components 7602-551NLF technical specifications, attributes, parameters and parts with similar specifications to Tusonix a Subsidiary of CTS Electronic Components 7602-551NLF.

Type
Parameter

Mount
Chassis, Panel

Mounting Type
Chassis, Panel

Housing Material
Thermoplastic

Material - Insulation
Polybutylene Terephthalate (PBT)

Operating Temperature
-55°C~105°C

Packaging
Tray

Published
2009

Feature
Filter 2500/5000pF, Flange

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screw

ECCN Code
EAR99

Number of Rows
1

Voltage - Rated
100V

Additional Feature
PBT, STANDARD: 94V-0

HTS Code
8536.69.40.40

Pitch
0.437 11.10mm

Current Rating
20A

Insulation Resistance
10GOhm

Number of Circuits
2

Wire Gauge (Max)
12 AWG

Number of Decks
1

Terminal Block Type
Barrier Block

Bottom Termination
PC Pin

Top Termination
Screws with Captive Plate

Number of Ways
2

Safety Approval
UL

Height
39.62mm

Length
45.97mm

Width
25.4mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for Tusonix a Subsidiary of CTS Electronic Components 7602-551NLF.

Datasheets:

tusonixasubsidiaryofctselectroniccomponents-7602551nlf-datasheets-4061.pdf

7602-551NLF Overview

Chassis, Panel is the mounting type for the device.The product is packaged in a Tray case.In addition, there are other features, such as PBT, STANDARD: 94V-0, to mention just a few.Many aspects of its Filter 2500/5000pF, Flange feature increase its effectiveness.Mounting of the part is based on Chassis, Panel.A circuit of 2 makes up this part.It runs at -55°C~105°C Operating Temperature.

7602-551NLF Features

7602-551NLF Applications

There are a lot of Tusonix a Subsidiary of CTS Electronic Components
7602-551NLF Terminal Blocks applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
