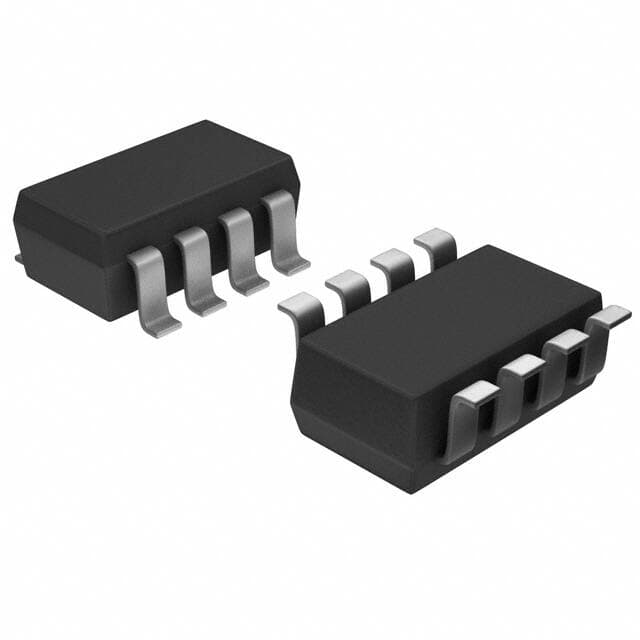

ST 74V2G04STR

Manufacturer No:

74V2G04STR

Manufacturer:

Package:

SOT-23-8

Description:

2/5.5V V 7.5 ns ns 2.9mm mm Gates & Inverters 8mA mA Surface Mount Surface Mount 2V~5.5V V 1μA μA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74V2G04STR information

ST 74V2G04STR technical specifications, attributes, parameters and parts with similar specifications to ST 74V2G04STR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-8

Number of Pins
8

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
74V

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Terminal Finish
Tin (Sn)

Subcategory
Gates

Packing Method
TAPE AND REEL

Technology
CMOS

Voltage - Supply
2V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74V2G04

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
2/5.5V

Supply Voltage-Min (Vsup)
2V

Number of Circuits
3

Load Capacitance
50pF

Output Current
8mA

Propagation Delay
7.5 ns

Quiescent Current
1μA

Family
74V

Logic Function
Buffer, Inverter

Current - Output High, Low
8mA 8mA

Logic Type
Inverter

Max I(ol)
0.004 A

Max Propagation Delay @ V, Max CL
7.5ns @ 5V, 50pF

Prop. Delay@Nom-Sup
11.5 ns

Schmitt Trigger
NO

Logic Level - Low
0.5V

Logic Level - High
1.5V

Length
2.9mm

Height Seated (Max)
1.45mm

Width
1.625mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST 74V2G04STR.

Datasheets:

stmicroelectronics-74v2g04str-datasheets-8063.pdf

stmicroelectronics-74v2g04str-datasheets-6555.pdf

74V2G04STR Overview

Due to its SOT-23-8 packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). Inverter logic is the basis of its operation. This part needs a voltage of 2V~5.5V to function properly. An extended operating temperature of -55°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 8mA 8mA. The series 74V contains it. A total of 8 terminations have been recorded. It has 3 functions that enhance user experience significantly. In 74V, this chip plays an important role. Use 74V2G04 when searching for device variants. Part bodies are injected with 8 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 8 pins in the datasheets. As the part is in a quiescent state, it has 1μA current flowing through it. A logic device of this type is a Gates. A 3 circuit is present in this device. A 50pF load capacitance is present in the part. To supply the device, a voltage of 2V must be applied. It reaches 5.5V when the supply voltage is maximal (Vsup). A method of industry TAPE AND REEL is included in the package. According to the datasheets, the part requires 2/5.5V power supplies. 8mA is the output current of the device.

74V2G04STR Features

Inverter Logic Type
Operating Temperature: -55°C~125°C
74V Family
Quiescent Current: 1μA
Output Current: 8mA
