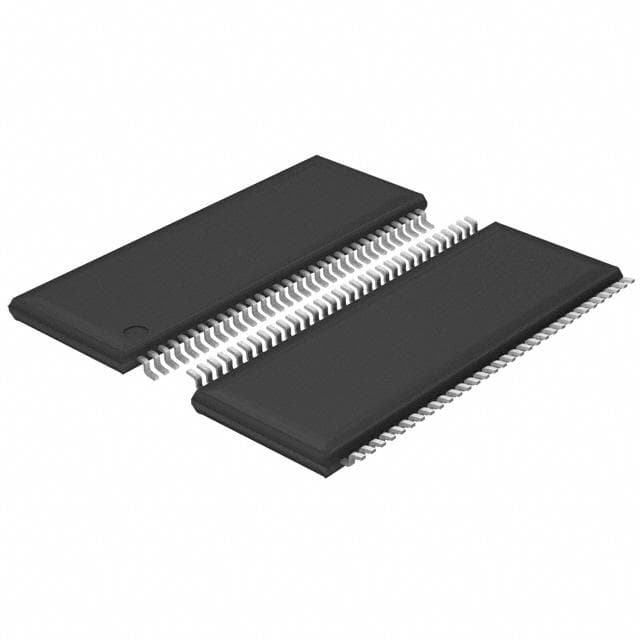

Renesas 74SSTVF16859PAG

Manufacturer No:

74SSTVF16859PAG

Manufacturer:

Renesas

Package:

TSSOP

Description:

13 Bit 2.5V Specialty Logic IC 64 Pin 0.5mm 2.5V TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74SSTVF16859PAG information

Renesas 74SSTVF16859PAG technical specifications, attributes, parameters and parts with similar specifications to Renesas 74SSTVF16859PAG.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
64

Published
2007

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
-40°C

Subcategory
Other Logic ICs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Frequency
220MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
64

Qualification Status
Not Qualified

Number of Elements
1

Polarity
Non-Inverting

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
2.7V

Min Supply Voltage
2.3V

Number of Bits
13

Propagation Delay
2.9 ns

Frequency (Max)
220MHz

Family
SSTV

Logic Function
Buffer

Logic IC Type
D FLIP-FLOP

High Level Output Current
-16mA

Low Level Output Current
16mA

Clock Edge Trigger Type
Positive Edge

Height
1mm

Length
17mm

Width
6.1mm

Thickness
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 74SSTVF16859PAG.

Datasheets:

integrateddevicetechnology-74sstvf16859pag-datasheets-3871.pdf

74SSTVF16859PAG Overview

It is accessible to the TSSOP package.The voltage of 2.5V is supplied to make sure that the device is able to operate normally.The memory features a size of 13 bits to store information.The number of all component pins adds up to 64.Signals are prevented from reflecting off the end of the transmission line through 64 terminations.It is mounted in the way of Surface Mount.There are 64 pins to form parts of its construction.Normal use can be kept when the minimum supply voltage is kept at 2.3V.Normal use can be kept when the maximum supply voltage is kept at 2.7V.It can be included into the subcategory of Other Logic ICs.The power supplies of 2.5V should be maintained for convenient use.The electronic part belongs to the family of SSTV that is optimized for high quality and reliable performance.What is much essential is that its operating temperature should not exceed the maximum value of 70°C.What is much essential is that its operating temperature should not be lower than the minimum value of -40°C.It is composed of 1 elements.It operates with the frequency of 220MHz.D FLIP-FLOP is adopted as its logic IC type.26 outputs are equipped to form the basis of its configuration.
