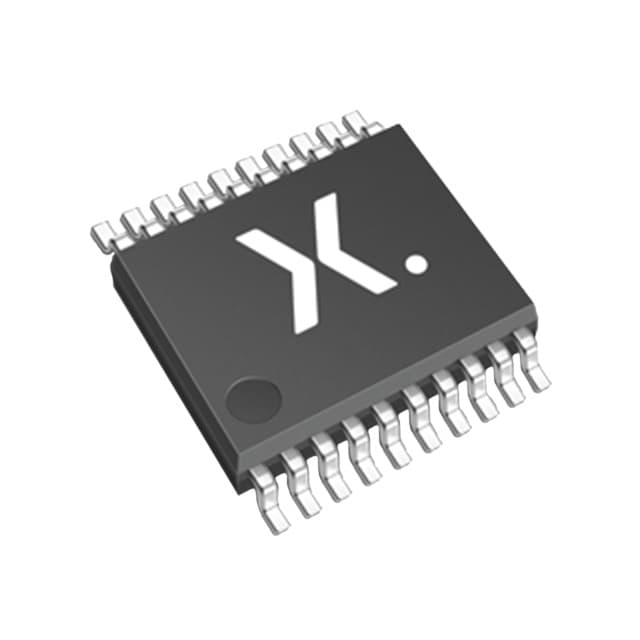

NEXPERIA 74LVC374APW,118

Manufacturer No:

74LVC374APW,118

Manufacturer:

NEXPERIA

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

1.65V~3.6V 150MHz 8 Bit D-Type Flip Flop DUAL 74LVC374 20 Pins 10μA 74LVC Series 20-TSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC374APW,118 information

NEXPERIA 74LVC374APW,118 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74LVC374APW,118.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-TSSOP (0.173, 4.40mm Width)

Number of Pins
20

Clock-Edge Trigger Type
Positive Edge

Number of Elements
1

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
74LVC

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Type
D-Type

Voltage - Supply
1.65V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
2.7V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
74LVC374

Output Type
Tri-State, Non-Inverted

Polarity
Non-Inverting

Supply Voltage-Max (Vsup)
3.6V

Number of Ports
2

Output Current
50mA

Number of Bits
8

Clock Frequency
150MHz

Propagation Delay
2.7 ns

Quiescent Current
100nA

Turn On Delay Time
1.5 ns

Family
LVC/LCX/Z

Logic Function
D-Type, Flip-Flop

Current - Quiescent (Iq)
10μA

Output Characteristics
3-STATE

Max Propagation Delay @ V, Max CL
7ns @ 3.3V, 50pF

Trigger Type
Positive Edge

Input Capacitance
4pF

Number of Input Lines
8

Length
6.5mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NEXPERIA 74LVC374APW,118.

74LVC374APW,118 Overview

It is embeded in 20-TSSOP (0.173, 4.40mm Width) case. A package named Tape & Reel (TR)includes it. T flip flop uses Tri-State, Non-Invertedas the output. The trigger configured with it uses Positive Edge. It is mounted in the way of Surface Mount. The JK flip flop operates at 1.65V~3.6Vvolts. In this case, the operating temperature is -40°C~125°C TA. This logic flip flop is classified as type D-Type. In this case, it is a type of FPGA belonging to the 74LVC series. You should not exceed 150MHzin the output frequency of the device. During its operation, it consumes 10μA quiescent energy. There have been 20 terminations. D latch belongs to the 74LVC374 family. A voltage of 2.7V is used as the power supply for this D latch. Its input capacitance is 4pFfarads. The electronic device belongs to the LVC/LCX/Zfamily. Surface Mount mounts this electronic component. This board has 20 pins. There are 8bits in this flip flop. It reaches the maximum supply voltage (Vsup) at 3.6V. This D flip flop is equipped with 0 ports. As a result of its output current of 50mA, it is very flexible in terms of design. Currently, there are 8 input lines present. It consumes a total of 100nA quiescent current at any given time.

74LVC374APW,118 Features

Tape & Reel (TR) package
74LVC series
20 pins
8 Bits

74LVC374APW,118 Applications

There are a lot of Nexperia USA Inc.
74LVC374APW,118 Flip Flops applications.

Storage Registers
Bounce elimination switch
Data storage
Data transfer
Latch
Registers
Memory
Frequency division
Memory
Event Detectors
