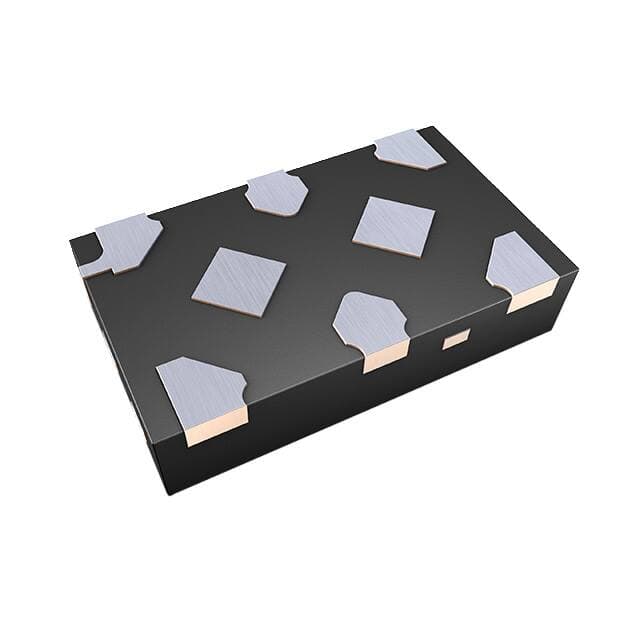

NEXPERIA 74LVC2G08GXX

Manufacturer No:

74LVC2G08GXX

Manufacturer:

NEXPERIA

Package:

8-XFDFN Exposed Pad

Description:

1.35mm mm Gates & Inverters 1.65V~5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC2G08GXX information

NEXPERIA 74LVC2G08GXX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74LVC2G08GXX.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Surface Mount

Package / Case
8-XFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
74LVC

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Technology
CMOS

Voltage - Supply
1.65V~5.5V

Terminal Position
BOTTOM

Terminal Form
BUTT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
2.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PBCC-B8

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
1.65V

Number of Circuits
2

Family
LVC/LCX/Z

Number of Inputs
2

Logic Type
AND Gate

Max Propagation Delay @ V, Max CL
4.8ns @ 5V, 50pF

Propagation Delay (tpd)
11.3 ns

Logic Level - Low
0.7V ~ 0.8V

Logic Level - High
0.95V ~ 3.4V

Current - Quiescent (Max)
4?A

Length
1.35mm

Height Seated (Max)
0.35mm

Width
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA 74LVC2G08GXX.

Datasheets:

nexperiausainc-74lvc2g08dc125-datasheets-4652.pdf

74LVC2G08GXX Overview

Shipping overseas is convenient with the part packed in 8-XFDFN Exposed Pad. High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the AND Gate logic principle, it works. A voltage of 1.65V~5.5V is required for the part to function properly. Increasing operating temperature to around -40°C~125°C TA. In Surface Mount, the part is mounted. There is 32mA 32mA output current in the high or low states. The 74LVC series contains it. Total terminations are 8. User experience is significantly enhanced by the part's 2 functions. The chip is a part of LVC/LCX/Z. 2 inputs are supported by the part. There are 2 circuits in this device. A minimum voltage of 1.65V is required to supply the device. 5.5V is the maximum supply voltage (Vsup). Standby mode has a maximum current of 4?A.
