NEXPERIA 74LVC273BQ,115
NEXPERIA 74LVC273BQ,115

NEXPERIA 74LVC273BQ,115

Manufacturer No:

74LVC273BQ,115

Manufacturer:

NEXPERIA

Package:

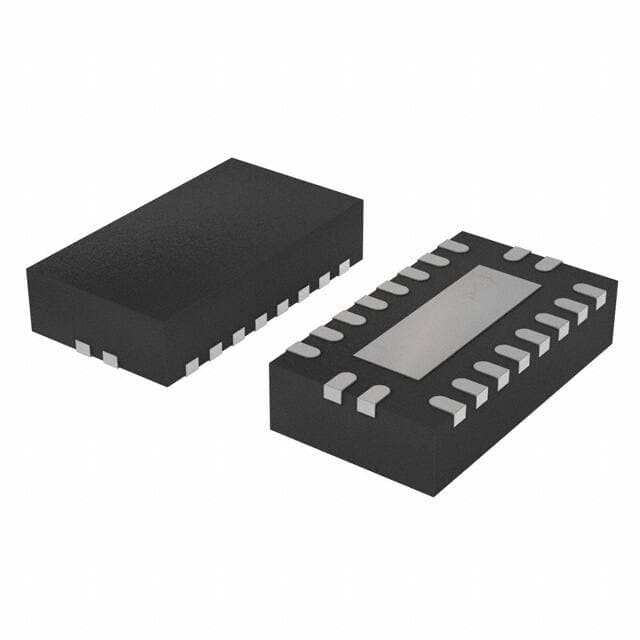

20-VFQFN Exposed Pad

Description:

1.65V~3.6V 230MHz D-Type Flip Flop QUAD 74LVC273 10?A 74LVC Series 20-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC273BQ,115 information

NEXPERIA 74LVC273BQ,115 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74LVC273BQ,115.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 20-VFQFN Exposed Pad
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 74LVC
  • Published
  • 2006
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • Type
  • D-Type
  • Terminal Finish
  • Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
  • Technology
  • CMOS
  • Voltage - Supply
  • 1.65V~3.6V
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 2.7V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • 74LVC273
  • JESD-30 Code
  • R-PQCC-N20
  • Qualification Status
  • Not Qualified
  • Output Type
  • Non-Inverted
  • Number of Elements
  • 1
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Clock Frequency
  • 230MHz
  • Family
  • LVC/LCX/Z
  • Current - Quiescent (Iq)
  • 10?A
  • Current - Output High, Low
  • 24mA 24mA
  • Output Polarity
  • TRUE
  • Number of Bits per Element
  • 8
  • Max Propagation Delay @ V, Max CL
  • 8.2ns @ 3.3V, 50pF
  • Trigger Type
  • Positive Edge
  • Input Capacitance
  • 5pF
  • Length
  • 4.5mm
  • Width
  • 2.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA 74LVC273BQ,115.

Datasheets:

PCN Assembly/Origin:

PCN Packaging:

RohsStatement:

74LVC273BQ,115 Overview


20-VFQFN Exposed Padis the packaging method. The Tape & Reel (TR)package contains it. T flip flop is configured with an output of Non-Inverted. This trigger is configured to use Positive Edge. In this case, the electronic component is mounted in the way of Surface Mount. The JK flip flop operates with an input voltage of 1.65V~3.6V volts. In the operating environment, the temperature is -40°C~125°C TA. It is an electronic flip flop with the type D-Type. This type of FPGA is a part of the 74LVC series. This D flip flop should not have a frequency greater than 230MHz. A total of 1elements are present in it. There is 10?A quiescent consumption. A total of 20terminations have been recorded. The 74LVC273 family contains it. A voltage of 2.7V provides power to the D latch. This T flip flop has a capacitance of 5pF farads at the input. It belongs to the family of electronic devices known as LVC/LCX/Z. As soon as Vsup reaches 3.6V, the maximum supply voltage is reached.

74LVC273BQ,115 Features


Tape & Reel (TR) package
74LVC series


74LVC273BQ,115 Applications


There are a lot of Nexperia USA Inc.
74LVC273BQ,115 Flip Flops applications.


  • Shift Registers
  • Storage Registers
  • Bounce elimination switch
  • Data storage
  • Data transfer
  • Latch
  • Registers
  • Memory
  • Frequency division
  • Memory
