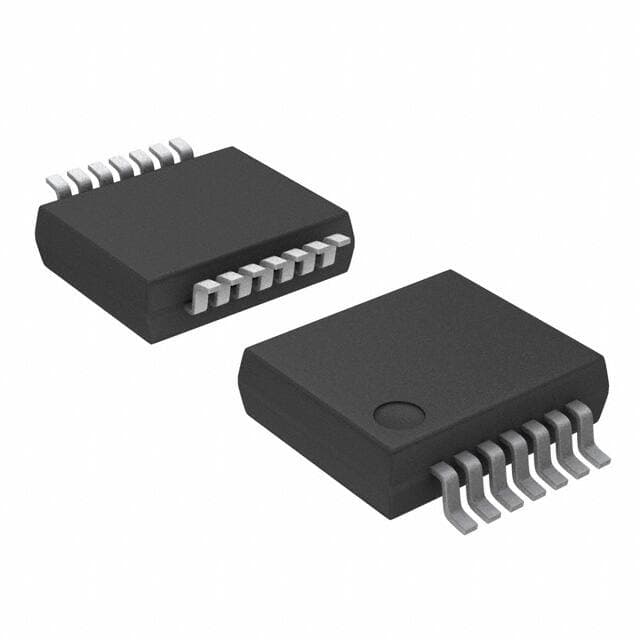

NEXPERIA 74HC4066DB,118

Manufacturer No:

74HC4066DB,118

Manufacturer:

NEXPERIA

Package:

14-SSOP (0.209, 5.30mm Width)

Description:

30ns, 20ns SPST - NO 95Ohm DUAL Analog Switches 74HC4066 14 Pins 1?A 4.5V 14-SSOP (0.209, 5.30mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74HC4066DB,118 information

NEXPERIA 74HC4066DB,118 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74HC4066DB,118.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-SSOP (0.209, 5.30mm Width)

Number of Pins
14

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Published
2008

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

Resistance
78Ohm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Power Dissipation
500mW

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
4.5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
74HC4066

Operating Supply Voltage
5V

Number of Channels
1

Max Supply Voltage
10V

Min Supply Voltage
2V

Operating Supply Current
40?A

Power Dissipation
500mW

Turn On Delay Time
36 ns

Logic Function
Demultiplexer, Multiplexer

Number of Inputs
4

Supply Type
Single

Turn-Off Delay Time
44 ns

-3db Bandwidth
200MHz

On-State Resistance (Max)
95Ohm

Multiplexer/Demultiplexer Circuit
1:1

Off-state Isolation-Nom
50 dB

Current - Leakage (IS(off)) (Max)
1?A

Channel Capacitance (CS(off), CD(off))
3.5pF

On-state Resistance Match-Nom
5Ohm

Switch Circuit
SPST - NO

Switch Time (Ton, Toff) (Max)
30ns, 20ns

Channel-to-Channel Matching (?Ron)
3 ?

Crosstalk
-60dB @ 1MHz

Switch-on Time-Max
30ns

Download datasheets and manufacturer documentation for NEXPERIA 74HC4066DB,118.

74HC4066DB,118 Overview

Presented in 14-SSOP (0.209, 5.30mm Width), this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Surface Mount is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 1:1. Increasing operating temperature to around -40°C~125°C TA. Totally, there are 14 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 4.5V voltage supply. A total of 14 pins are injected into the electrical part body. A SPST - NO switching circuit is used for these analog switches. Using the 74HC4066 search parameter, you can discover variants of the switch. In this multiplexer, the internal resistance is 78Ohm. For details about the functions of 14 pins, please refer to the datasheets. It is generally not recommended to supply a voltage higher than 10V to the switch device in normal circumstances. The digital multiplexer has a low cost Single supply. 2V is the lowest voltage the electrical component should receive. For this digital switch to work, 40?A current would suffice. An analogue multiplexer drains from a single voltage supply at 2V~10V. The electrical part can be operated at 5V voltage levels. The 4 inputs need to be operated in order to work.

74HC4066DB,118 Features

1 Channels
Switch Circuit: SPST - NO
40?A Supply Current
-3db Bandwidth: 200MHz

74HC4066DB,118 Applications

There are a lot of Nexperia USA Inc.
74HC4066DB,118 Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
