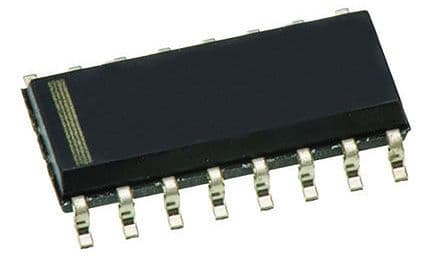

NEXPERIA 74HC390D

Manufacturer No:

74HC390D

Manufacturer:

NEXPERIA

Package:

Description:

2 Element 5V CMOS DUAL Counters & Dividers Unidirectional NEGATIVE EDGE SO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74HC390D information

NEXPERIA 74HC390D technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74HC390D.

Type
Parameter

Mount
Surface Mount

Package / Case
SO

Number of Pins
16

Published
1997

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
5V

Frequency
71MHz

Time@Peak Reflow Temperature-Max (s)
30

Number of Elements
2

Temperature Grade
AUTOMOTIVE

Voltage
6V

Max Supply Voltage
6V

Min Supply Voltage
2V

Propagation Delay
315 ns

Family
HC/UH

Logic Function
Counter

Direction
Unidirectional

Trigger Type
NEGATIVE EDGE

Load/Preset Input
YES

Height
1.45mm

Length
10mm

Width
3.9mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NEXPERIA 74HC390D.

RohsStatement:

nexperia-pesd3v3c1bsfyl-rohsstatement-2649.pdf

Datasheets:

nexperia-74hc390d-datasheets-1862.pdf

74HC390D Overview

This device is supplied in the SO package. It is configured with 16terminations. Having a voltage supply of 5Vallows it to operate in a highly flexible manner. The 2elements are connected by wires. In the circuit, there are 16pins that connect other components. It is mounted in the manner of [0]. It is a member of the family [0]. The device contains 4bits of information. There is a temperature grade of AUTOMOTIVEon this device. Despite operating at 125°Cfor extended periods, its electrical characteristics remain stable. This device is designed to operate within a specified temperature range with a lower limit generally set at -40°C. The frequency of the device is 71MHz. There is a maximum voltage available for the device of 6V. It is possible for the device to operate at a voltage as low as 2V.
